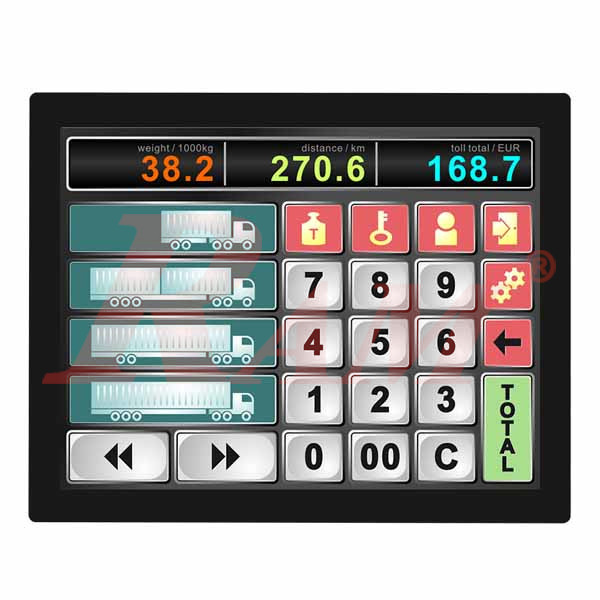

HMT150ATA-D Smart TFT LCD Module – 15.0 Inch Capacitive Touch Display

The HMT150ATA-D is a 15.0-inch Smart TFT LCD module featuring a built-in 32-bit MCU and advanced graphics engine. It supports TOPWAY SGTools and pre-designed TML graphical interfaces, enabling fully standalone HMI operation without continuous control from a host MCU.

This module is designed for industrial control, instrumentation, medical electronics, and power equipment applications, offering high reliability and ease of integration

Key Features
  • Built-in 32-bit MCU with graphics engine
  • Standalone HMI operation using preloaded TML files
  • Capacitive Touch Panel (CTP)
  • RS-232C UART communication interface
  • USB U-Drive for project and image download
  • HDMI input (1024×768 @ 60Hz)
  • 256 MB Flash memory
  • RTC (without battery)
  • Lua script engine support
  • Built-in buzzer
  • 90° screen rotation support
  • Anti-glare (AG) surface treatment
  • Wide operating temperature range
Display Specifications
  • Display Size: 15.0 inch (diagonal)
  • Resolution: 1024 × 768 pixels (RGB)
  • Color Depth: 65K colors (16-bit)
  • Pixel Configuration: RGB Stripe
  • Display Mode: Transmissive / Normal White
  • Viewing Direction:
    • 6H (gray-scale inverse)
    • 12H (for color scale content)
  • Active Area: 304.13 × 228.10 mm
  • Outline Dimensions: 348 × 274 × 31.8 mm (max)
  • Backlight: LED
  • Surface Treatment: Anti-Glare (AG)
Optical Characteristics
  • Viewing Angle (CR ≥ 10):
    • Left / Right / Top / Bottom: 70° min, 80° typ
  • Contrast Ratio: 800:1 (typ.)
  • Response Time:
    • Rise (TON): 8 ms (typ.)
    • Fall (TOFF): 12 ms (max.)
  • Luminance: 400 cd/m² (typ.)
  • Luminance Uniformity: 80% (typ.)
  • Color Gamut: 65K colors
Touch Panel
  • Type: Capacitive Touch Panel (CTP)
  • Touch coordinate and Key-ID reporting via UART
  • Touch functions configurable via system commands
  • Supports touch events defined in TML editor
Electrical Specifications
  • Operating Voltage:
    • Typical: 12.0 V
    • Range: 11.5 – 12.5 V
  • Operating Current:
    • Typical: 1000 mA @ 12 V (normal display condition)
  • RTC Backup Current:
    • Typical: 1 µA
Interfaces & Connectivity
RS-232 Interface (K1)
  • Signals: VCC, GND, TX, RX, RTS (BUSY)
  • Default Baud Rate: 115200 bps
  • Hardware handshake supported and recommended
USB Interface (K20)
  • Used for TML project, image, and icon preload
  • Operates as USB U-Drive
  • Also used by the capacitive touch panel
HDMI Interface (K19)
  • Input Resolution: 1024 × 768 @ 60Hz
  • Standard HDMI TMDS signal support
Memory Resources
  • Flash Memory: 256 MB
    • Stores TML files, images, icons, and user data
  • RAM (VP Variables):
    • Numeric, string, and graphic data
  • Custom Memory Area: Supported
  • RTC: Built-in (no battery included)
Operating Conditions
  • Operating Temperature: −20°C to +70°C
  • Storage Temperature: −30°C to +80°C
  • Humidity: No condensation
Typical Applications
  • Industrial HMI panels
  • Factory automation systems
  • Medical equipment interfaces
  • Power & energy monitoring systems
  • Instrumentation and control terminals
