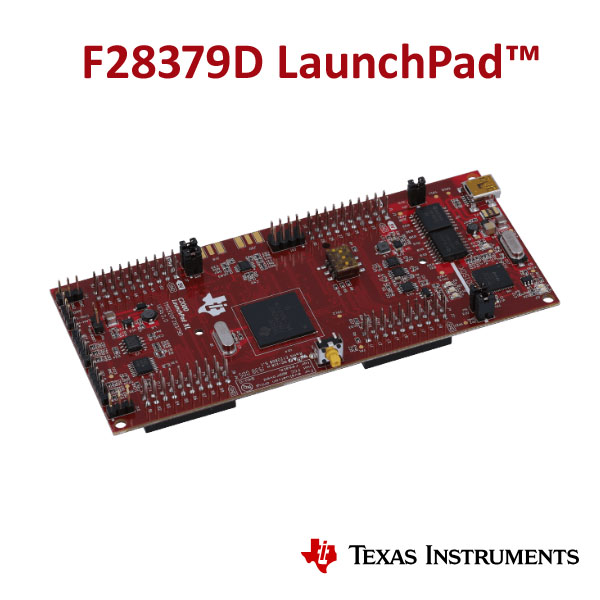

LAUNCHXL-F28379D – TI LaunchPad™ Development Kit for C2000™ Delfino™ MCU
Manufacturer: Texas Instruments
Product Type: MCU Development / Evaluation Board
Product Overview
The LAUNCHXL-F28379D is a high-performance LaunchPad™ development kit based on the C2000™ Delfino™ MCU family. It is designed for real-time control applications such as motor control, digital power, and industrial automation. The board provides rich analog and digital peripherals, on-board debugging, and flexible expansion options for rapid prototyping and development.
Key Features
MCU & Processing
- MCU: TMS320F28379D (C2000™ Delfino™ series)
- Dual C28x CPU cores, up to 200 MHz each
- Dual Control Law Accelerators (CLAs)
- High real-time performance suitable for control applications
Memory
- On-chip Flash memory: up to 1 MB
- On-chip RAM for high-speed data processing
Analog & Digital Peripherals
- High-resolution PWM (HRPWM) modules
- 12-bit and 16-bit ADCs
- 12-bit DACs
- Comparators and delta-sigma filter modules
- ePWM, eCAP, and eQEP modules for motor control and encoder feedback
- CAN communication support
Debug & Connectivity
- On-board isolated XDS100v2 USB JTAG emulator
- USB interface for power, programming, and debugging
- Programmable LEDs and push buttons
- Access to GPIO and peripheral signals via headers
Expansion
- Dual BoosterPack™ compatible expansion headers
- Supports stacking and use of multiple BoosterPack add-on boards
Software Support
- Code Composer Studio™ (CCS) IDE
- C2000Ware drivers, libraries, and examples
- Compatible with motor control and digital power software libraries
Typical Applications
- Motor control and drives
- Digital power conversion
- Industrial automation and control
- Robotics and real-time control systems
- Embedded control education and prototyping
Notes
- Powered via USB or external supply options
- Intended for development, evaluation, and prototyping use (not a finished end product)
