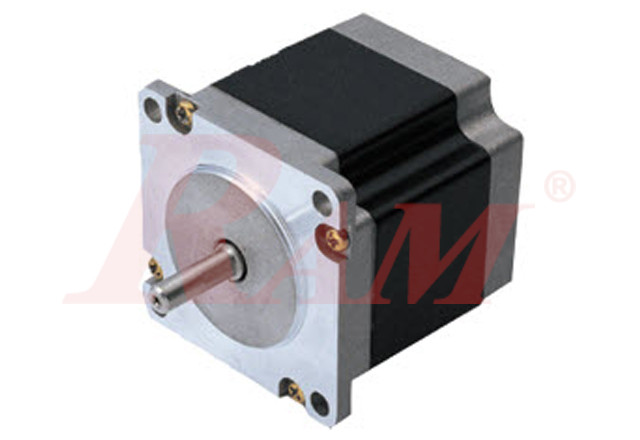

Stepper Motor (NEMA 23) 57HZ76-13

https://www.ram-e-shop.com/web/image/product.template/5742/image_1920?unique=80c5520

Holding Torque: 1.3 N.m
Current /phase: 3 A

1,950.00 EGP 1950.0 EGP 1,950.00 EGP

1,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: STEP.57HZ76.13

Open loop stepper motor - Frame Size 57x57mm

Technique specification:

  • Step Angle: 1.8°
  • Current /phase: 3 A
  • Resistance /phase: 1Ω
  • Inductance /phase: 1.8 mH
  • Holding Torque: 1.3 N.m
  • leads: 8 wires
  • Motor Weight: 1 Kg
  • Length: 76 mm

Technique parameters:

  • Step angle accuracy: +/-5%,(full step,no load)
  • Resistance accuracy: +/-10%
  • Inductance accuracy: +/-20%
  • Temperature rise: 80°C, rated current, 2 phase on
  • Ambient temperature: -10°C;-+50°C
  • Insulation resistance: 100MΩMin.,500VDC
  • Dielectric strength: 500VAC for one minute
  • Shaft radial play: 0.06Max(450g-load)
  • Shaft axial play: 0.08Max(450g-load)

Download

DATASHEET
