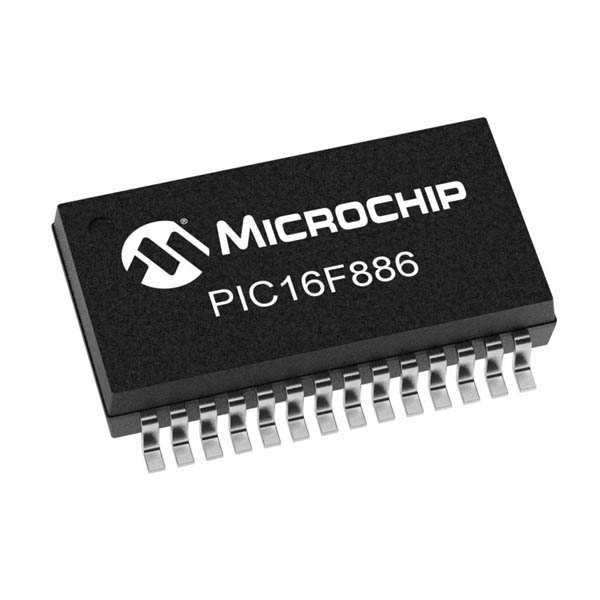

Internal Reference: SMD.PIC16F886.ISO


  • Precision Internal Oscillator: - Factory calibrated to ±1% - Software selectable frequency range of 8 MHz to 32 kHz - Software tunable - Two-Speed Start-Up mode - Fail-safe clock monitoring for critical applications - Clock mode switching during operation for low-power operation
  • Power-Saving Sleep mode
  • Power-on Reset (POR)
  • Selectable Brown-out Reset (BOR) voltage
  • Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
  • In-Circuit Serial Programming™ (ICSP™) via two pins
  • In-Circuit Debug (ICD) via two pins
  • High-endurance Flash/EEPROM cell: - 100,000 erase/write cycle enhanced Flash program memory, typical - 1,000,000 erase/write cycle data EEPROM memory, typical - Data EEPROM retention > 40 years
  • Self-reprogrammable under software control
  • Programmable code protection
  • Peripheral Features: Device Features: - 1 input only pin - 25 I/O - High sink/source current 25 mA - Interrupt-on-pin change option
  • Timers: - TMR0: 8-bit timer/counter with 8-bit prescaler - TMR1 enhanced: 16-bit timer/counter with prescaler, External Gate Input mode and dedicated low-power 32 kHz oscillator - TMR2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
  • Capture/Compare/PWM (CCP) module
  • Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
  • Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask capability
  • Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module: - Supports RS-485, RS-232 and LIN compatibility - Auto-Baud Detect - Auto-wake-up on Start bit
  • Ultra Low-Power Wake-up (ULPWU) Analog Features:
  • 10-bit 11 channel Analog-to-Digital (A/D) Converter
  • 2 Analog Comparator modules with: - Programmable on-chip Voltage Reference (CVREF) module (% of VDD) - Fixed 0.6 Vref - Comparator inputs and outputs externally accessible - SR Latch mode
