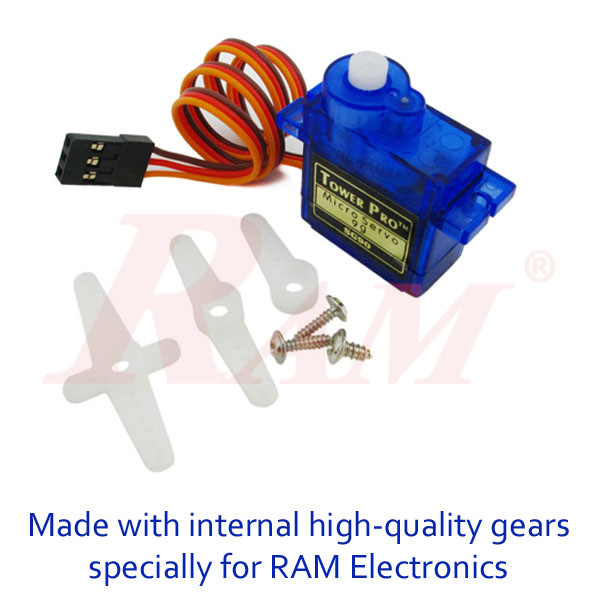

SG90 Micro Servo Motor 180° 1.8 kg.cm Plastic Gears
High Quality Material Servo 180 Degree
Internal Reference:
SERVO.SG90
Overview
SG90 9g Micro Servo Tiny and lightweight with high output power. Servo can rotate approximately 180 degrees (90 in each direction) and works just like the standard kinds but smaller.
You can use any servo code, hardware, or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. It comes with 3 horns (arms) and hardware.
Specifications
- Weight: 9g
- Dimension: 22.2 x 11.8 x 31 mm approx.
- Stall torque: 1.8 kgf·cm
- Operating speed: 0.1 s/60°
- Dead Band Width: 5 μsec
- Servo Type: Analog Servo
