Model： | FT-995-C002 |
| Product Name: | 12V 95kg.cm 180° |
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range: | -20℃～60℃ |
| Size: | A：65mm B：30mm C: 48mm |
| Weight: | 187.5g ± 1g |
| Gear type: | Steel |
| Limit angle: | NO limit |
| Bearing: | Ball bearings |
| Horn gear spline: | 15T / 7.6mm |
| Gear Ratio： | 1/399 |
| Case: | Aluminum |
| Connector wire: | 30 ± 0.5CM |
| Motor: | Core Motor |
| Operating Voltage Range: | 6-12V |
| Idle current (at stopped) | 26mA @ 12V |
| No load speed: | 0.322 sec/60° (31RPM) @12V |
| Running current: | 2200mA@ 12V |
| Peak stall torque: | 95kg.cm@ 12V 105kg.cm @13V |
| Rated torque: | 22.5kg.cm@ 12V |
| Stall current: | 9.8A@ 12V |

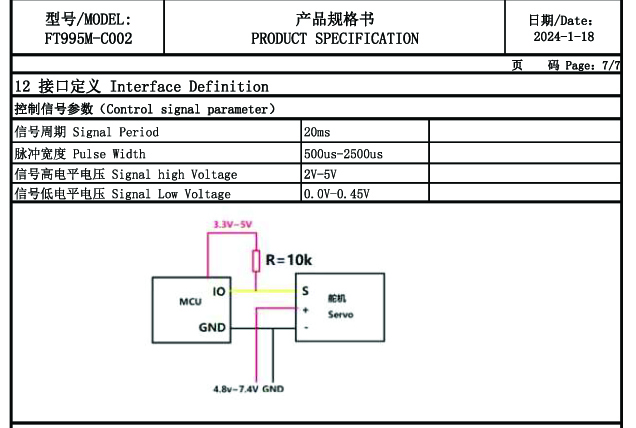

| Command signal | Pulse Width Modulation (PWM) |
| Control System Type | Digital comparator |
| Pulse width range | 500~2500 μ sec |
| Stop position | 1500 μ sec |
| Running degree | 180±5°(at 500→2500μsec) |
| Dead band width | ≤4 μ sec |
| Rotating direction | Counterclockwise (1500→2500 μ sec) |
