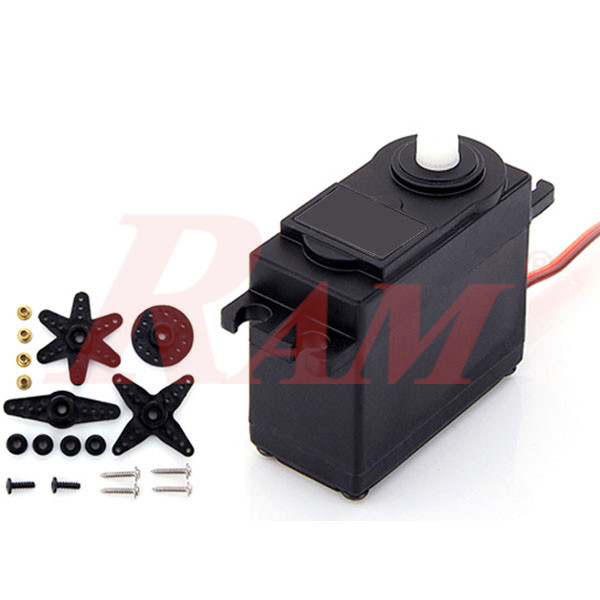

FS5106R Servo Motor 360° Continuous 6 kg.cm Plastic Gears

https://ram-electronics.odoo.com/web/image/product.template/7122/image_1920?unique=e133d2a

High-Quality Servo 360 Degree

395.00 EGP 395.0 EGP 395.00 EGP

395.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FS5106R

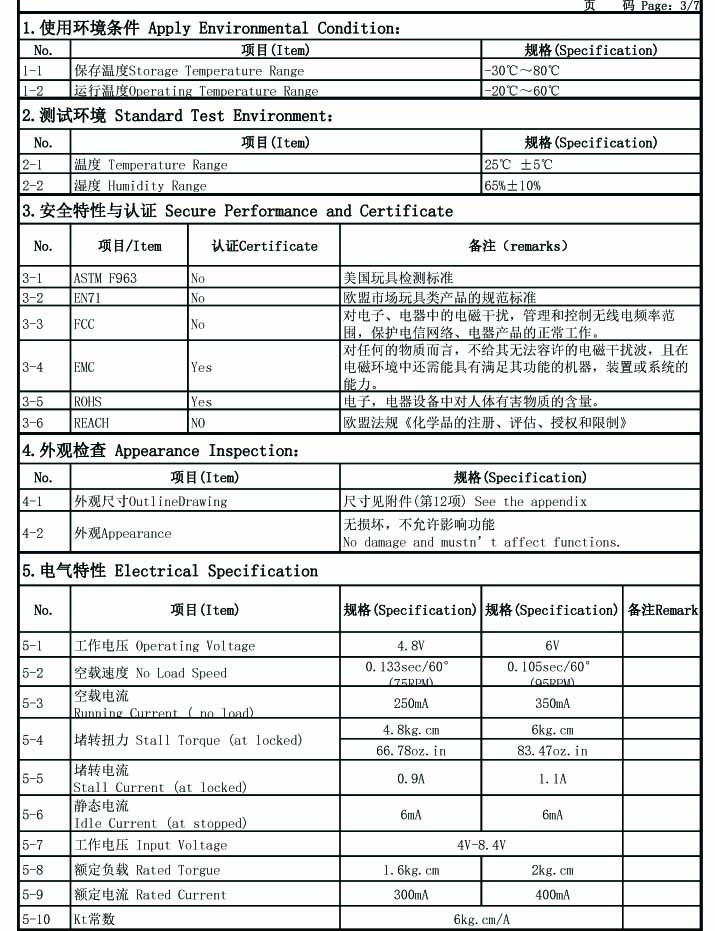

Electrical Specification

Item
Specification
Specification
Operating Voltage
4.8V
6V
No Load Speed
0.133sec / 60° (75 RPM)
0.105sec / 60° (95 RPM)
Running Current ( no load)
250mA
350mA
Stall Torque (at locked)
4.8 kg.cm
6 kg.cm
Stall Current (at locked)
0.9A
1.1A
Idle Current (at stopped)
6mA
6mA
Input Voltage
4V - 8.4V
4V - 8.4V
Rated Torque
1.6kg.cm
2kg.cm
Rated Current
300mA
400mA
Kt
6kg.cm/A
6kg.cm/A

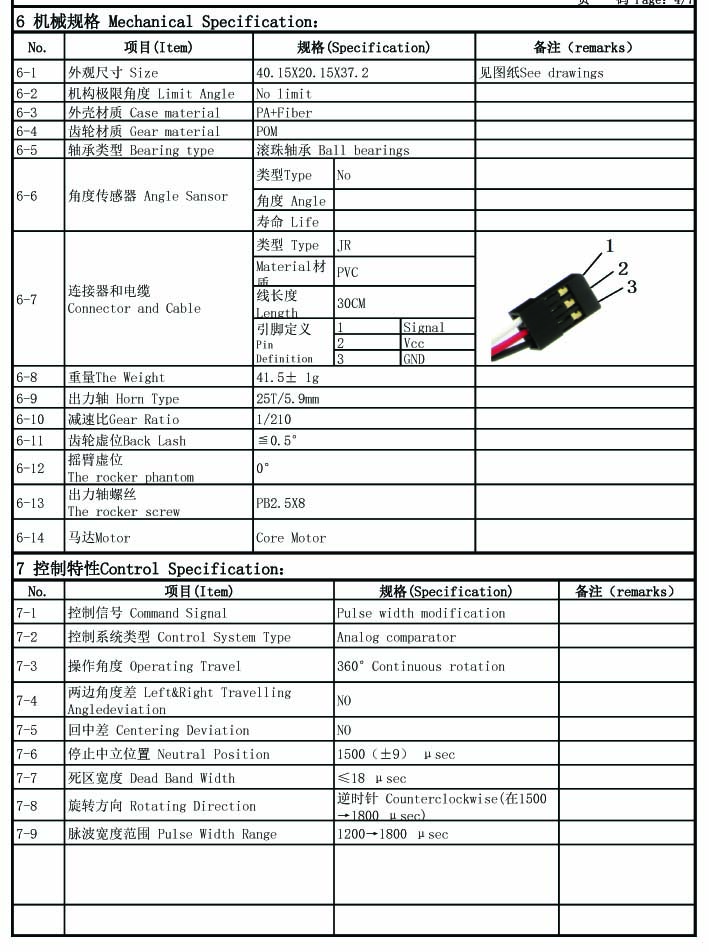

Mechanical Specification

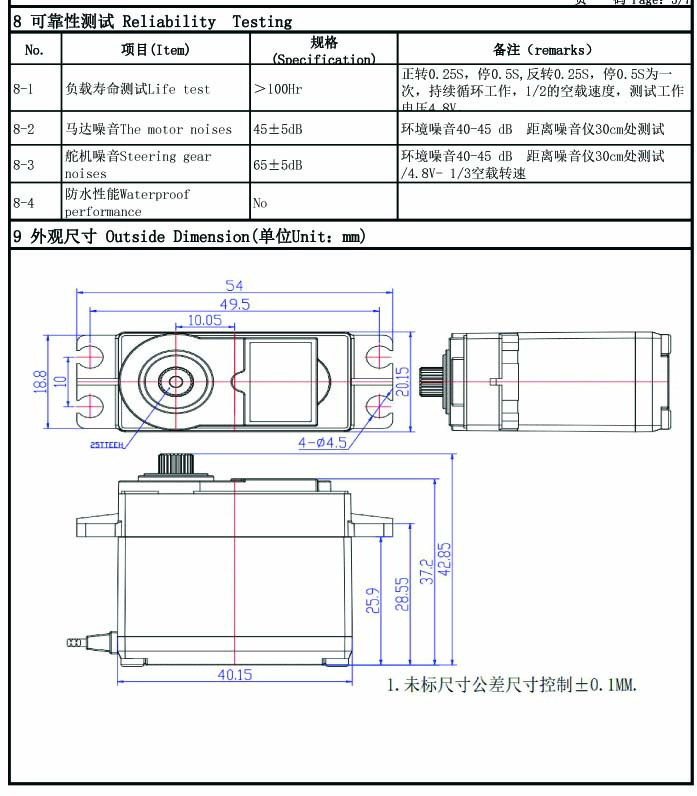

  • Size: 40 x 20 x 37 mm
  • Limit Angle: No limit
  • Case Material: PA+Fiber
  • Gear Material: POM
  • Bearing Type: Ball bearings
  • Angle Sensor: NO
  • Horn Type: 25T/5.9mm
  • Command Signal: Pulse width modification
  • Control System Type: Analog Comparator
  • Operating Travel: 360° Continuous rotation
