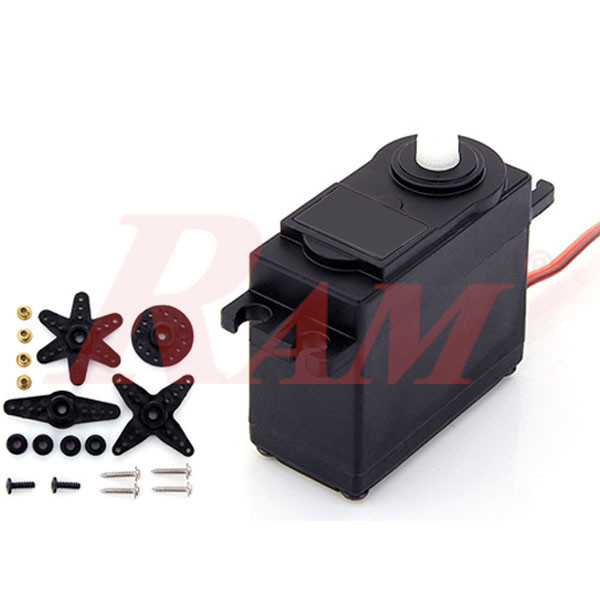

FS5106B Servo Motor 180° 6 kg.cm Plastic Gears

https://www.ram-e-shop.com/web/image/product.template/7121/image_1920?unique=e133d2a

High-Quality Servo 180 Degree

350.00 EGP 350.0 EGP 350.00 EGP

350.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SERVO.FS5106B

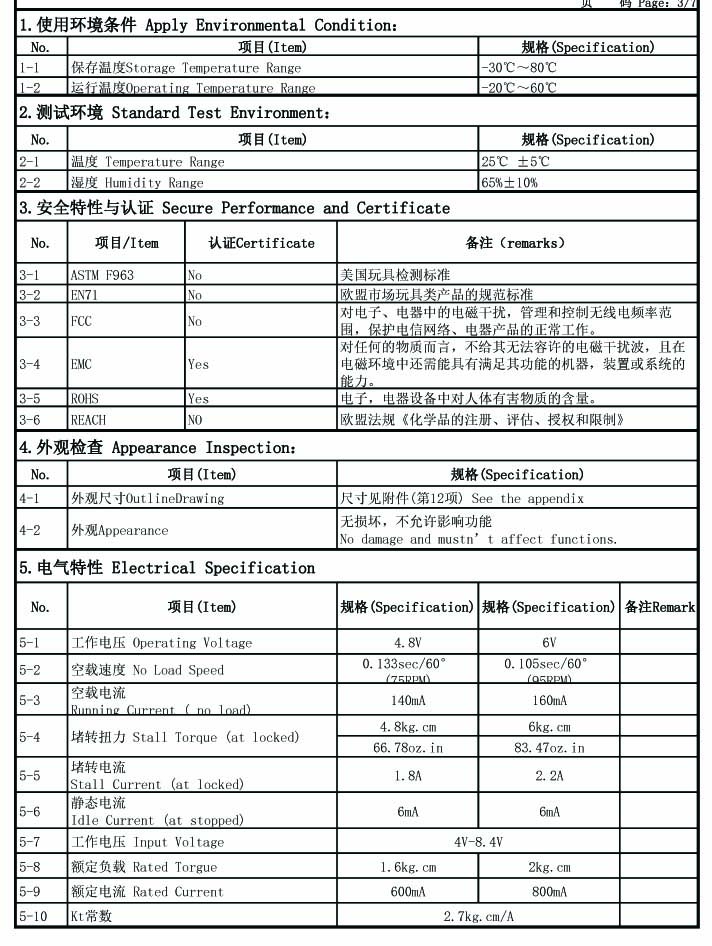

Electrical Specification

Item
Specification
Specification
Operating Voltage
4.8V
6V
No Load Speed
0.133sec / 60° (75 RPM)
0.105sec / 60° (95 RPM)
Running Current ( no load)
140mA
160mA
Stall Torque (at locked)
4.8 kg.cm
6 kg.cm
Stall Current (at locked)
1.8A
2.2A
Idle Current (at stopped)
6mA
6mA
Input Voltage
4V - 8.4V
4V - 8.4V
Rated Torque
1.6kg.cm
2kg.cm
Rated Current
600mA
800mA
Kt
2.7kg.cm/A
2.7kg.cm/A

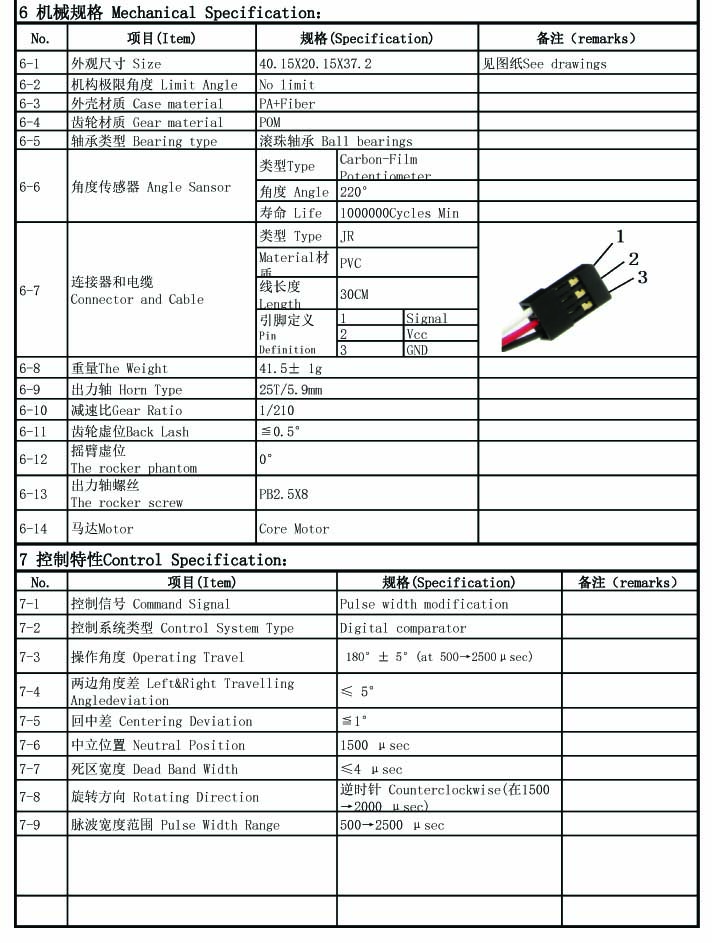

Mechanical Specification

  • Size: 40 x 20 x 37 mm
  • Limit Angle: No limit
  • Case Material: PA+Fiber
  • Gear Material: POM
  • Bearing Type: Ball bearings
  • Angle Sensor:
    • Type: Carbon-Film Potentiometer
    • Angle: 220°
    • Life: 1000000Cycles Min
  • Horn Type: 25T/5.9mm
  • Command Signal: Pulse width modification
  • Control System Type: Digital Comparator
  • Operating Travel: 180°± 5°(at 500→2500μsec)
