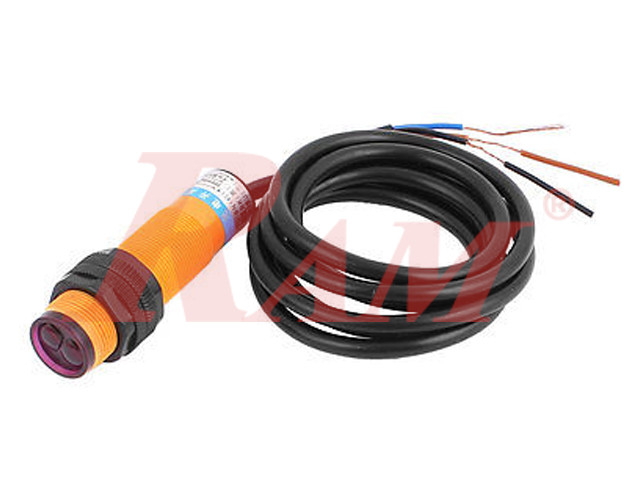

E18-B03N1 Infrared Proximity Photoelectric Switch

https://www.ram-e-shop.com/web/image/product.template/7106/image_1920?unique=de0c2ca

IR Proximity 30cm Detection Distance

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: SEN.E18.B03N1

General purpose NPN output infrared sensor that offered up to 30cm sensing distance. It can be used as an automation machine, a mobile robot for obstacle detection. it is a non-contact detection.

The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sunlight. The sensing distance can be adjusted manually.

Specification:

  • Diffuse reflective type
  • Light source: Infrared
  • Sensing range up to 30cm
  • Input voltage: 6-36VDC
  • NPN output
  • Dimension: 1.6cm (D) x 6.7cm (L)
  • Output Switch Type NPN-Normally Open (NPN-NO)

Note: The sensing distance is vary based on the Vcc you apply for it.

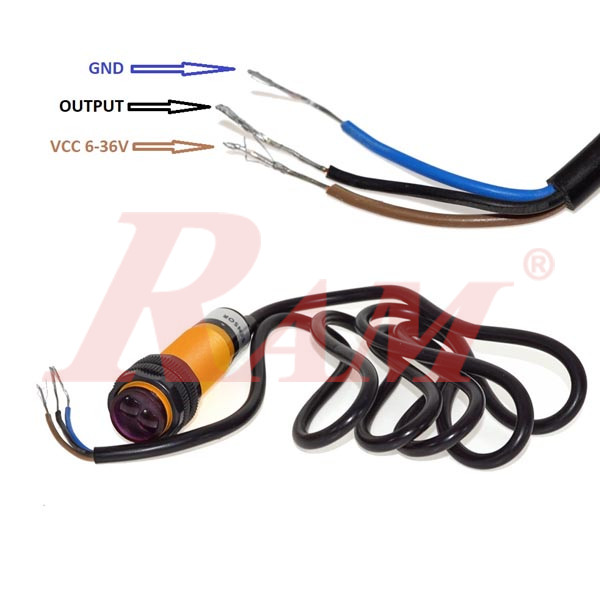

Wiring Connection:

  • Brown wire:  DC voltage supply (6: 36 V)
  • Blue wire: Ground
  • Black wire: output signal

Download

DATASHEET
