HiWonder BigClaw Mechanical Gripper (With Servo Motor)
Product Description
The BigClaw Mechanical Gripper (Servo Version) is a robust metal robotic gripper equipped with an anti-blocking high-torque servo motor, making it ideal for robotic arms, automation projects, and STEM applications.
The parallel symmetrical claw design ensures stable gripping, while the included servo provides strong torque, smooth movement, and protection against stalling or overload.
Key Features
- ✅ Equipped with anti-blocking servo motor
- ✅ Full metal structure for durability

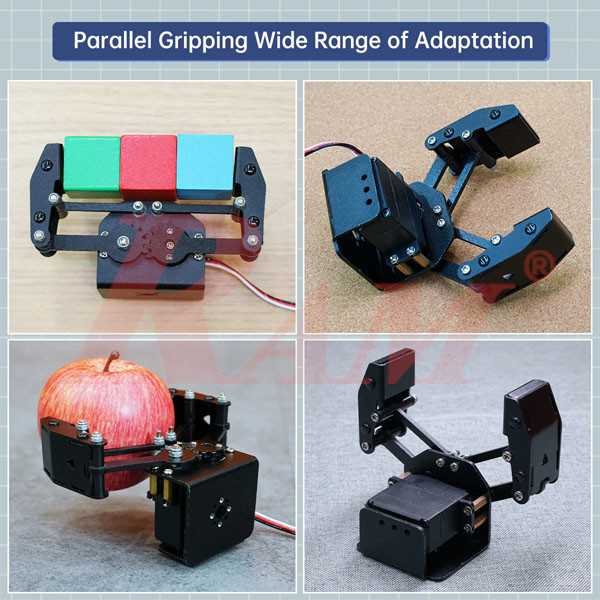

- ✅ Parallel symmetrical gripping mechanism
- ✅ Large gripping surface for stable object handling
- ✅ Multiple mounting holes for DIY and robotic arm integration
- ✅ Ready to use – servo included

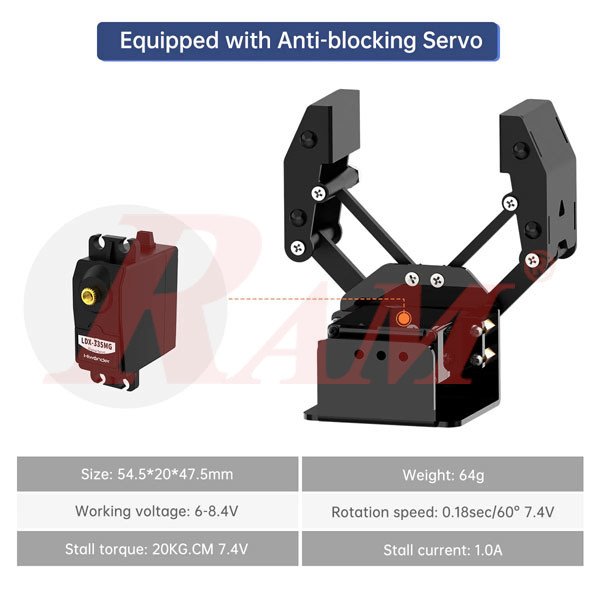

Servo Motor Specifications (Included)
Specification | Value |
|---|---|
| Servo Model | LDX-335MG |
| Size | 54.5 × 20 × 47.5 mm |
| Weight | 64 g |
| Working Voltage | 6 – 8.4 V |
| Rotation Speed | 0.18 sec / 60° @ 7.4 V |
| Stall Torque | 20 kg·cm @ 7.4 V |
| Stall Current | 1.0 A |
| Feature | Anti-blocking protection |

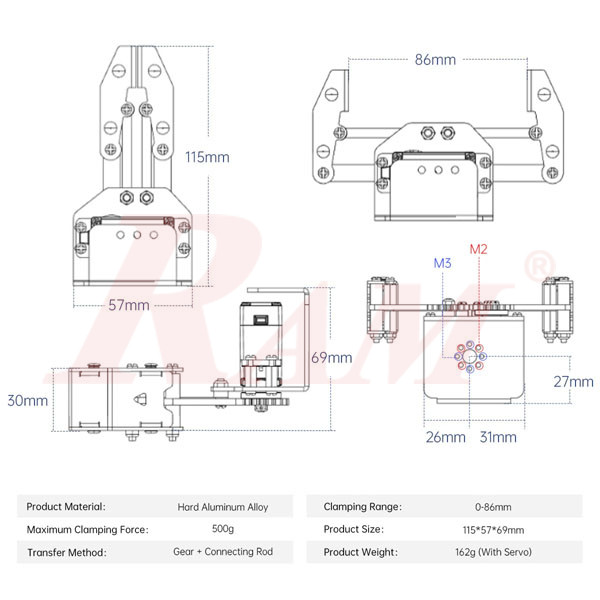

Gripper Specifications
Specification | Value |
|---|---|
| Material | Aluminum alloy (full metal) |
| Maximum Opening | ~86 mm |
| Gripping Type | Parallel mechanical gripper |
| Control Method | Standard PWM servo control |
| Application | Robotic arms, automation, DIY robots |
Power Requirements
-
Servo Power: 6–8.4V
⚠️ Do not power directly from MCU 5V pin
Use an external power supply or BEC for reliable operation.
Typical Applications
- Robotic arm end-effector
- Automation and pick-and-place systems
- Educational & STEM projects
- DIY robotics projects
What’s Included
- BigClaw Mechanical Gripper
- LDX-335MG Anti-Blocking Servo Motor
- Mounting screws & hardware
