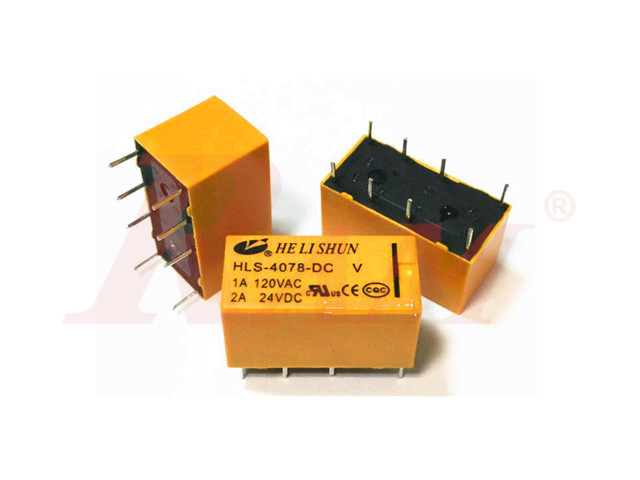

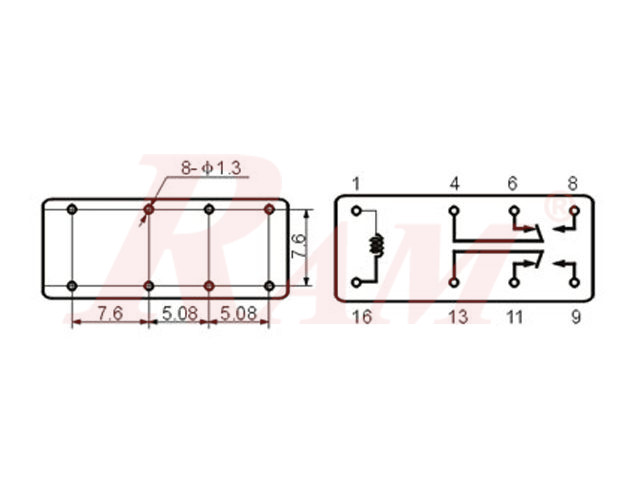

- Dimensions: 20 x 9.9 x 12.2 mm
- Relay Coil Voltage: 24Vdc
- Contact Data:
- 1A 120VAC
- 2A 24VDC
CONTACT DATA :
Contact Form | 2C |
Contact Material | Ag+Au |
Contact Ratings | 1A 120VAC; 2A/24VDC |
Max Switching Voltage | 240VAC/60VDC |
Max Switching Current | 2A |
Max Switching Power | 120VA/30W |
Initial Contact Resistance | 50m Ω Max at 6VDC 1A |
Life Expectancy Electrical | 100,000 Operations(rated load) |
Life Expectancy Mechanical | 10,000,000 Operations(no load) |
GENERAL DATA :
| Insulation Resistance | 100M Ω Min at500VDC |
| Dielectric Strength Between Open Contacts | 500VAC 50-60HZ( 1 minute) |
| Dielectric Strength Between Contacts And Coil | 1000VAC 50-60HZ( 1 minute) |
| Operate Time | 6ms max |
| Release Time | 4ms max |
| Ambient Temperature | -30 ℃ to+70 ℃ |
| Shock Resistance | Malfunction: 10G |
| Destruction: 15G | |
| Vibration Resistance | 10-55Hz,1.5mm double amplitude |
| Ambient humidity | 40-85% RH |
| Weight | Approx 5g |
| Safety Standard | UL CE CQC |
COIL DATA: (@20 ℃ )
