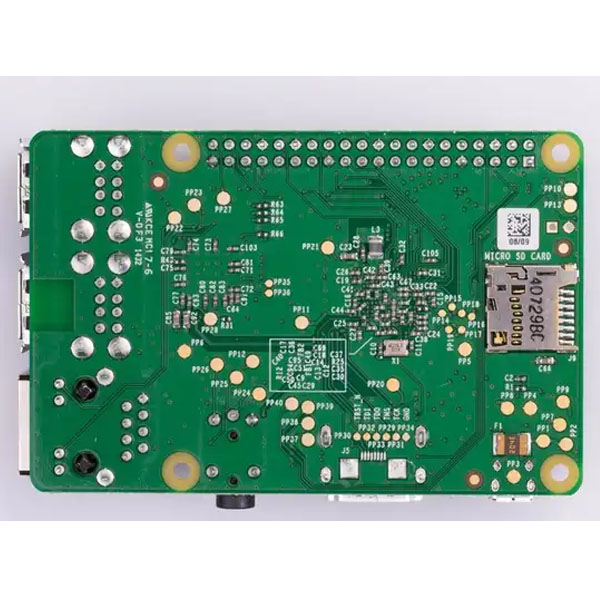

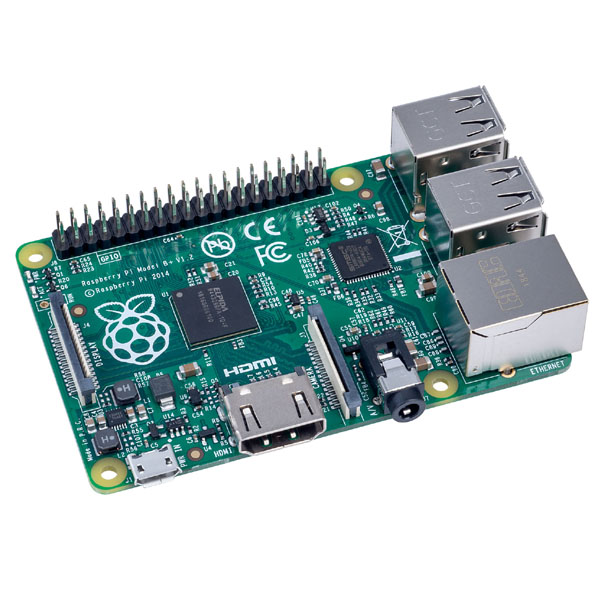

Raspberry Pi 1B+ V1.2

https://ram-electronics.odoo.com/web/image/product.template/8919/image_1920?unique=9b97f50

1,700.00 EGP 1700.0 EGP 1,700.00 EGP

1,700.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: RASPBERRY.PI.1B+ONE.PLUS

Raspberry Pi Model B+ is the final revision of the original Raspberry Pi. It replaced the Model B in July 2014 and was superseded by Raspberry Pi 2 Model B

Specifications

Compared to the Model B it has:

  • More GPIO pins. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model A and B.
  • More USB ports. It comes with 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
  • Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
  • 100 Base Ethernet (same as the original Model B)
  • Lower power consumption. By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
  • Better audio. The audio circuit incorporates a dedicated low-noise power supply.
  • Neater form factor. We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.

Compliance

Raspberry Pi 1 Model B+ has undergone extensive compliance testing, and meets the following European standards:

  • Electromagnetic Compatibility Directive (EMC) 2014/30/EU
  • Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU

View and download global compliance certificates for Raspberry Pi products.

The Adopted Trademarks HDMI®, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Fetures:

  • Broadcom BCM2835 processor (ARM11@700 MHz)
  • 512MB LPDDR2 SDRAM
  • 4x USB 2.0 ports
  • 100BASE-TX Ethernet
  • Full-DH HDMI output
  • MIPI CSI-2 camera and DSI display
  • Standart 40-pin GPIO connector

Download

Software & OS

  • Raspberry Pi OS is the recommended operating system for normal use on a Raspberry Pi
  • Raspberry Pi Imager is the quick and easy way to install Raspberry Pi OS and other operating systems to a microSD card, ready to use with your Raspberry Pi.
