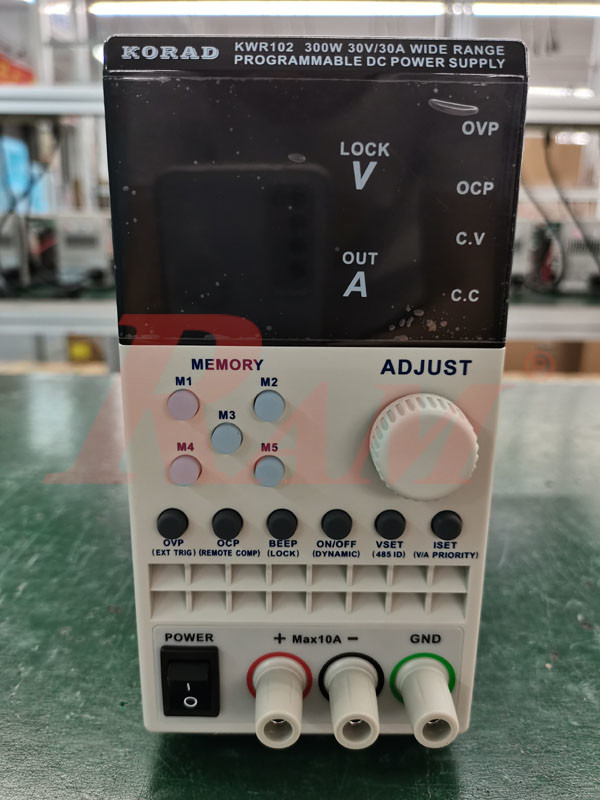

Main Features:
- 0-30V, 0-30A, 300W, wide range voltage and current for the users to choose
- 1mV/1mA high accuracy resolution programmable DC power supply
- Multiple communication rates
- Compact size, high power ratio
- Low ripple and noise, linear output
- No internal relay switch, no replay noise
- Full scale output without shifting gears and uninterrupted output
- Short circuit test environment, such as high-current contact life test
- Convenient fast recall
- Current, voltage and temperature protections
- Adjustable voltage rise slope
- Providing Labview and C++ driver and communication examples
- Interfaces: USB, RS232 & LAN
Specifications:
| Model |
KWR102 |
|
Input Rating |
Power: 300W / Voltage: 0-30V / Current: 0-30A |
|
Load Regulation |
Voltage: ≤0.01% +3mV Current: ≤0.1% +5mA |
|
Line Regulation |
Voltage: ≤0.01% +3mV Current: ≤0.1% +3mA |
|
Setup Resolution |
Voltage: 1mV Current: 1mA |
|
Read back Resolution |
Voltage: 1mV Current: 1mA |
|
Setup Accuracy (25℃±5℃) |
Voltage: ≤0.5% +3mV Current: ≤0.5% +5mA |
|
Ripple (20-20M) |
Voltage: ≤10mVrms +0.03% of current output Current: ≤3mArms |
|
Voltage Rise Time |
Voltage: ≤50ms Current: ≤50ms |
|
Temperature Coefficient |
Voltage: ≤150ppm Current: ≤150ppm |
|
Read Back Temperature Coefficient |
Voltage: ≤150ppm Current: ≤150ppm |
|

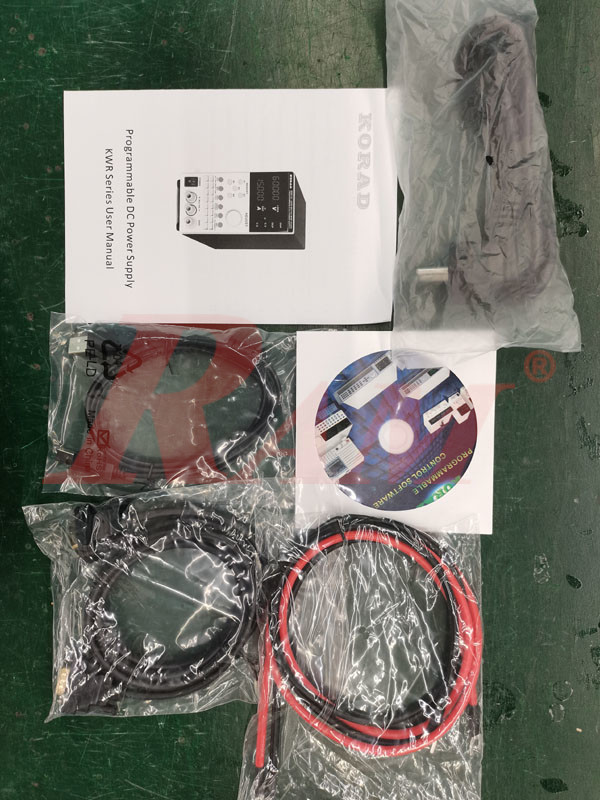

Accessories |
User manual, 1*EURO plug, software CD & USB cable |
|
Interfaces |
USB, RS232 & LAN |
|
Weight and Dimension (W*D*H) |
3.9 KGS / 90mm* 184mm* 337mm |
