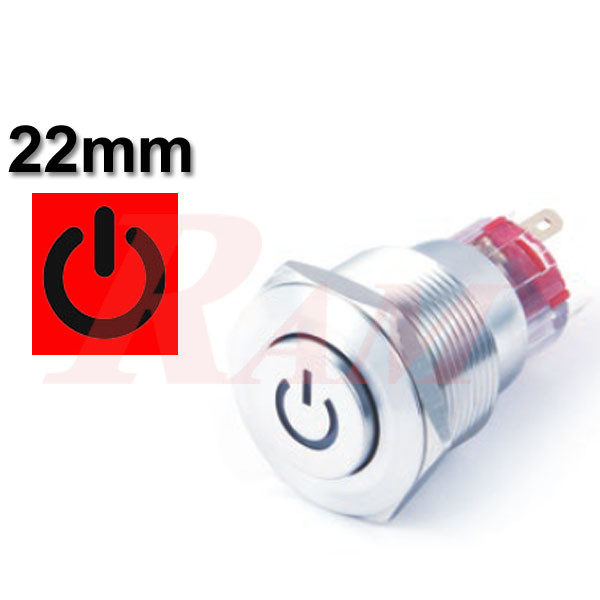

Metal Switch 22mm Waterproof Metal with POWER Symbol Red LED

225.00 EGP 225.0 EGP 225.00 EGP

225.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: PB.22.M.POWER

These chrome-plated metal buttons are rugged and waterproof and look really good while doing it! Simply drill a 22mm hole into any material up to 1/2″ thick and you can fit these in place, there’s even a rubber gasket to keep any water out of the enclosure.

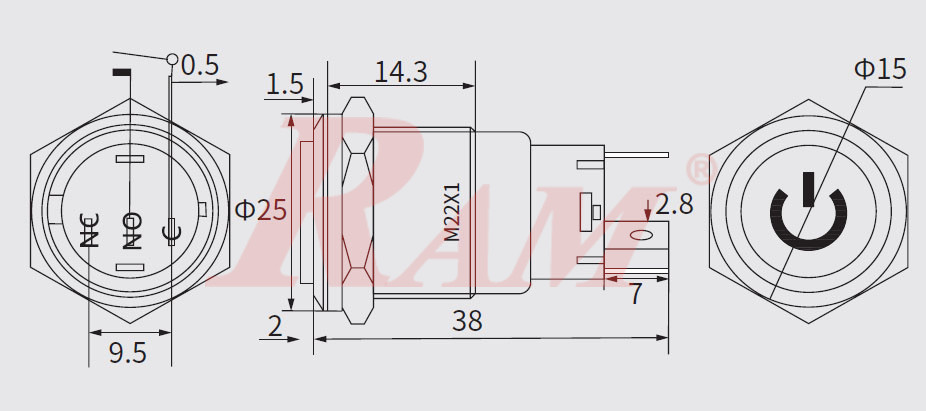

On the front of the button is a flat metal actuator, surrounded by a power symbol Red plastic LED ring. On the back, there are 3 contacts for the button (common, normally open, and normally closed) and 2 for the LED ring (+ and -). Connect 12V to the LED to have it light up nicely, there’s a built-in resistor! If you want to use this with a higher voltage, for 24V, simply add a 470-ohm resistor in series with the LED connection to keep the LED current at around 20mA.

  • Metal self-locking pushbutton switch
  • Install Diameter φ22mm
  • Switch rating: 4A / 220VDC
  • Switch contacts: 1 NO, 1 NC
  • Material: Chrome-plated brass
  • Grade: IP67 IK09
  • Contact resistance: < 50 mOhm
  • Insulation resistance: > 1000 Mohm
  • Temperature: -20 C to +55 C
  • Mechanical life: > 500,000
  • Electrical life: > 50,000
  • Panel thickness: 1-13mm
  • Operating pressure: 1.5 – 2.5 N
  • Operating stroke: 2mm
  • Lamp-rated voltage: 12V
