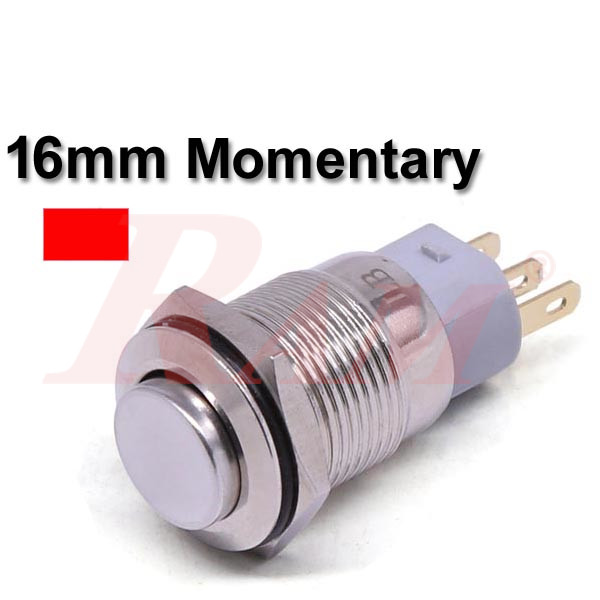

Metal Switch Momentary 16mm Red LED Ring Water/Dustproof

Self-Reset 3A/250VAC

145.00 EGP 145.0 EGP 145.00 EGP

145.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: PB.16.M.TACK.RED

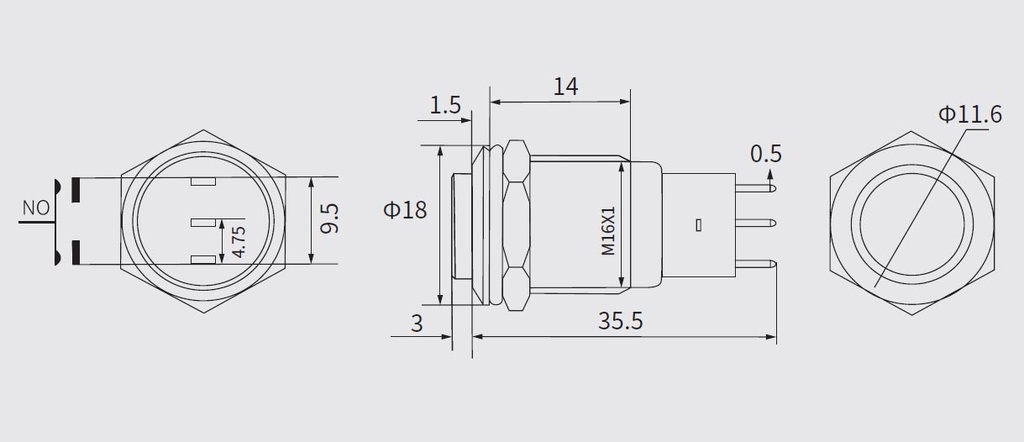

These chrome-plated metal buttons are rugged and waterproof and look really good while doing it! Simply drill a 16mm hole into any material up to 1/2″ thick and you can fit these in place, there’s even a rubber gasket to keep any water out of the enclosure.

On the front of the button is a flat metal actuator, surrounded by a Red plastic LED ring. On the back, there are 3 contacts for the button (common, normally open, and normally closed) and 2 for the LED ring (+ and -). Connect 12V to the LED to have it light up nicely, there’s a built-in resistor! If you want to use this with a higher voltage, for 24V, simply add a 470-ohm resistor in series with the LED connection to keep the LED current at around 20mA.

  • Metal momentary pushbutton switch
  • Install Diameter φ16mm
  • Switch rating: 3A / 220VDC
  • Switch contacts: 1 NO, 1 NC
  • Material: Chrome-plated brass
  • Grade: IP67 IK09
  • Contact resistance: < 50 mOhm
  • Insulation resistance: > 1000 Mohm
  • Temperature: -20 C to +55 C
  • Mechanical life: > 500,000
  • Electrical life: > 50,000
  • Panel thickness: 1-13mm
  • Operating pressure: 1.5 – 2.5 N
  • Operating stroke: 2mm
  • Lamp-rated voltage: 12V
