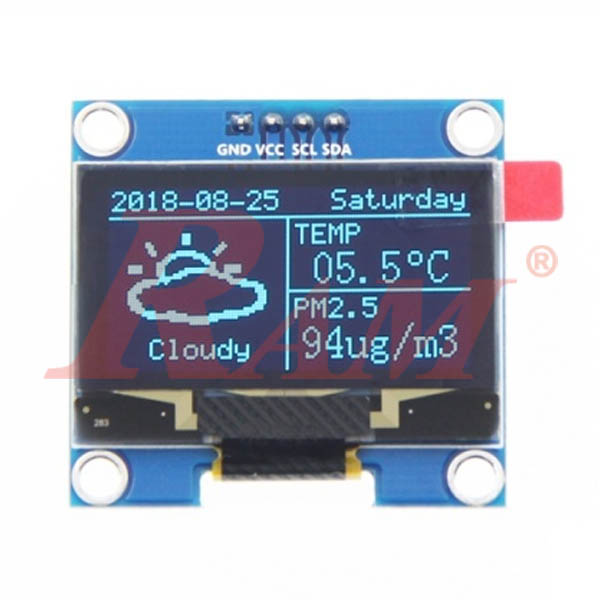

OLED 1.3" 4pin LCD Display Module I2C IIC Communicate

https://ram-electronics.odoo.com/web/image/product.template/7794/image_1920?unique=70bdfbb

OLED 1.3 inch 128x64 Pixel

275.00 EGP 275.0 EGP 275.00 EGP

275.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: OLED.1.3.4PIN

Product Description

  • 1.3 inch OLED screen with black and white or black and blue color display
  • 128x64 resolution for clear display and high contrast
  • Large viewing angle: greater than 160° (one screen with the largest viewing angle in the display)
  • Wide voltage supply (3V~5V), compatible with 3.3V and 5V logic levels, no level shifting chip required

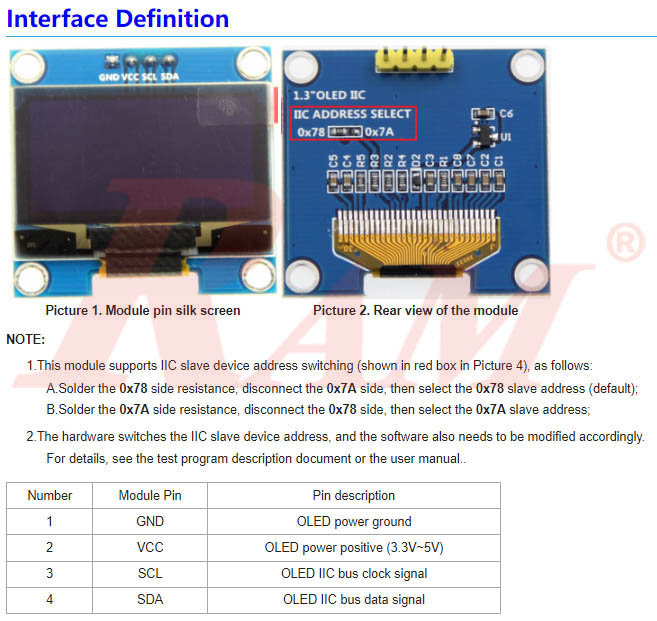

  • With IIC bus, only a few IOs can be used to light up the display
  • Ultra-low power consumption: normal display is only 0.06W (far below the TFT display)
  • Military-grade process standards, long-term stable work
  • Provides a rich sample program for STM32, C51, Arduino, Raspberry Pi and MSP430 platforms
  • Provide underlying driver technical support

Product Parameters

NameParameter
Display Colorwhite/blue
SKUMC130GW/MC130GB

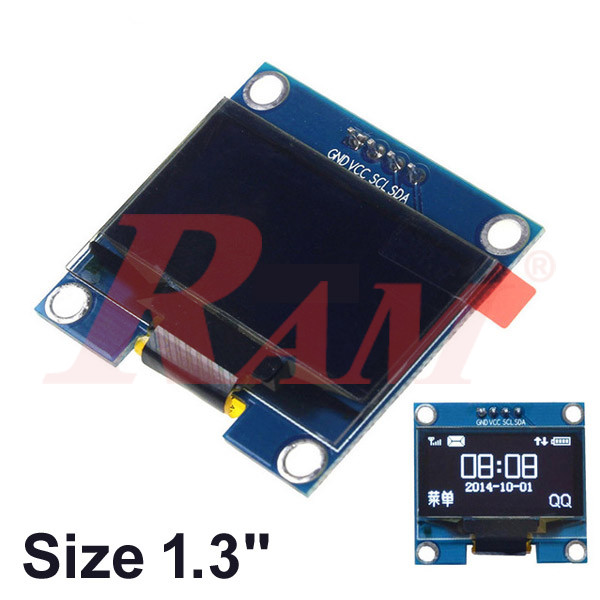

Screen Size 1.3 inch
Screen TypeOLED
Driver ICSH1106
Resolution128*64 (Pixel)
Module InterfaceIIC interface
Active Area 29.42x14.7 mm
Touch Screen TypeNo touch screen
Touch ICNo IC

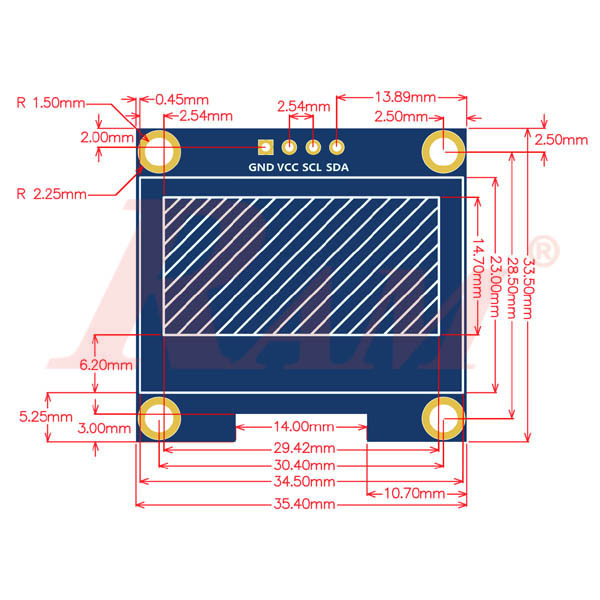

Module PCB Size33.50x35.40 mm
Visual Angle>160°
Operating Temperature-20℃~60℃
Storage Temperature-30℃~70℃
Operating Voltage3.3V~5V
Power ConsumptionTBD
Rough Weight(Package containing)10g

Download

DATASHEET & EXAMPLE CODE
