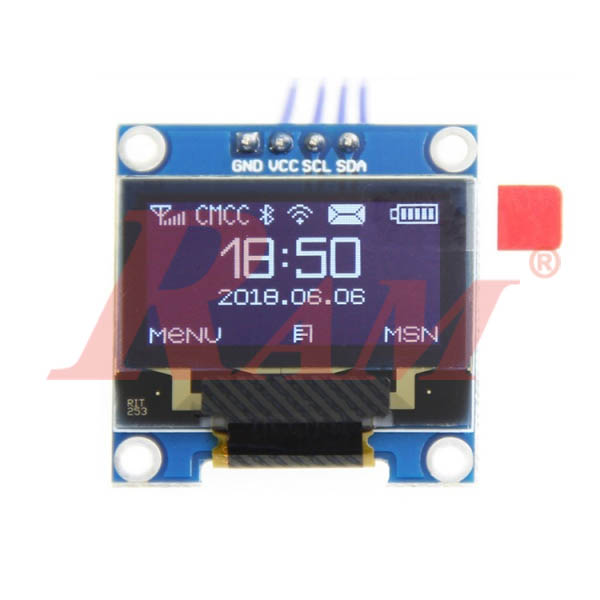

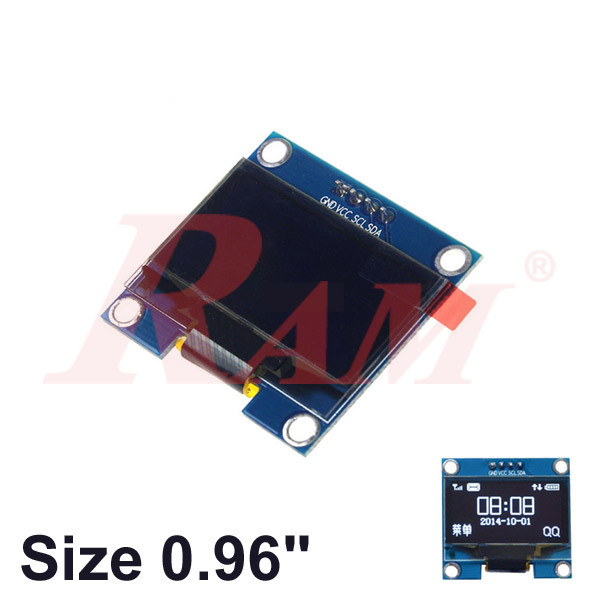

OLED 0.96" 4pin LCD Display Module I2C IIC Communicate


OLED 0.96 inch 128x64 Pixel

175.00 EGP 175.0 EGP 175.00 EGP

175.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: OLED.0.96.4PIN

Product Description

  • High resolution: 128x64 (have the same resolution as 12864, high PPI)
  • Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor)
  • Ultra-low power consumption: it's 0.06w in normal conditions (far less than TFT display)
  • Wide voltage supply (3V~5V), 3.3V and 5V level logic compatible, no level shifter IC
  • IIC interface and only requires 2 IOs to light up easily
  • The range of working temperature is industrial (-20°C~70°C)
  • Military-grade process standards, long-term work steadily
  • Provide rich multi-platform routines and the technology support of underlying driver

Product parameters

Size0.96 inch
OLED driver chipSSD1306
Resolution128*64 Pixel
Module interfaceIIC,4PIN

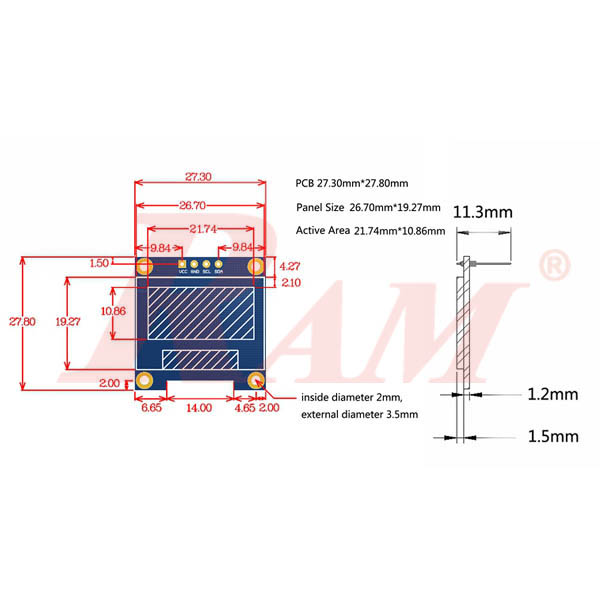

Effective display area21.744 x 10.864 mm
Module size27.3 x 27.8 mm
Field of View>160°
Working temperature-20℃~60℃
storage temperature-30℃~70℃
Working voltage3.3V / 5V
power dissipationTBD
Product weight8g

Interface definition

PINlabelPin description
2VCCOLED VCC input(3.3V~5V)
3SCLOLED clock signal of IIC bus
4SDAOLED data signal of IIC bus
