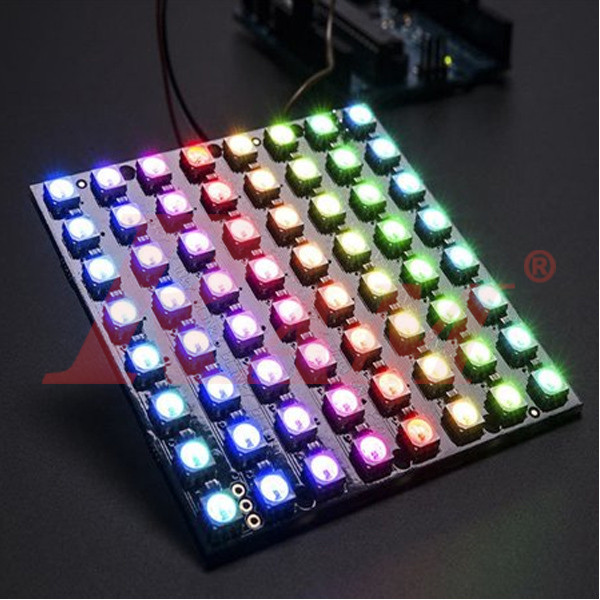

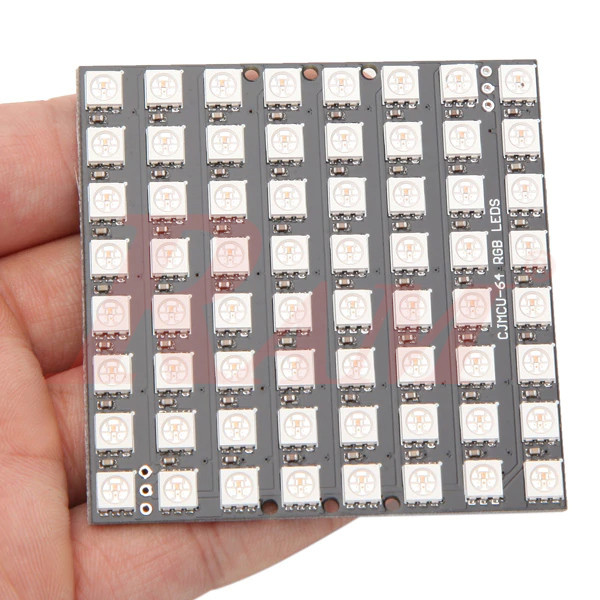

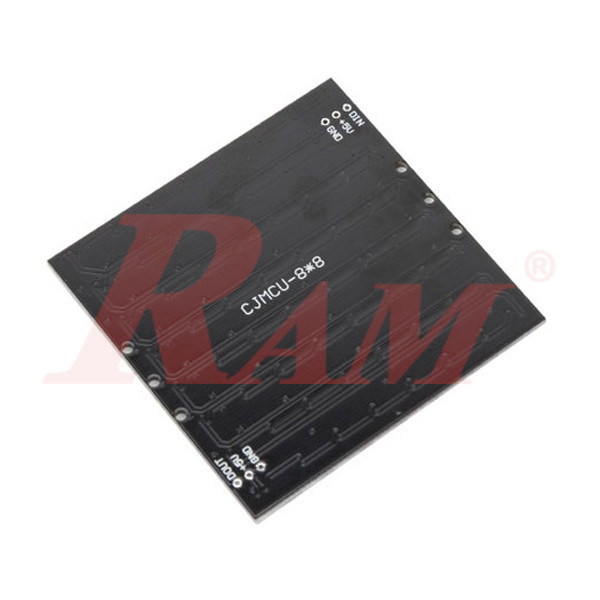

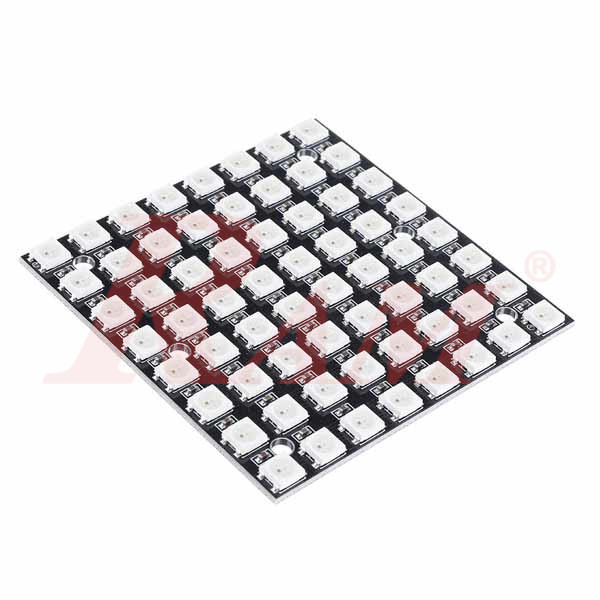

NeoPixel 64-bit WS2812 5050 RGB LED Driver Square Development Board

175.00 EGP 175.0 EGP 175.00 EGP

175.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.WS2812.64.5050.SQUARE


  • CJMCU Full-color 8x8 64-bit RGB LED WS2812 Module Board (Neo Pixel Matrix).
  • Cascading port transmission signal by a single line.
  • Built-in electric reset circuit and power lost reset circuit.
  • Built-in signal reshaping circuit, after wave reshaping to the next driver, ensures wave-form distortion does not accumulate.
  • Each pixel of the three primary colors can achieve 256 brightness display, completed 16777216 colors full-color display, and scan frequency not less than 400Hz/s. When the refresh rate is 30fps, the cascade number is not less than 1024 points. Send data at speeds of 800Kbps. Widely used for LED decorative lighting, Indoor/outdoor LED video irregular screen.


  • Chip: WS2812 LED Color: RGB
  • LED Type: 5050 LED
  • Number: 64
  • Board Color: Black
  • Voltage: 5V
  • Size: Approx. 65mm x 65mm
  • Package includes: 1 x CJMCU 64 Bit WS2812 5050 RGB LED Driver Development Board (NeoPixel Matrix)
