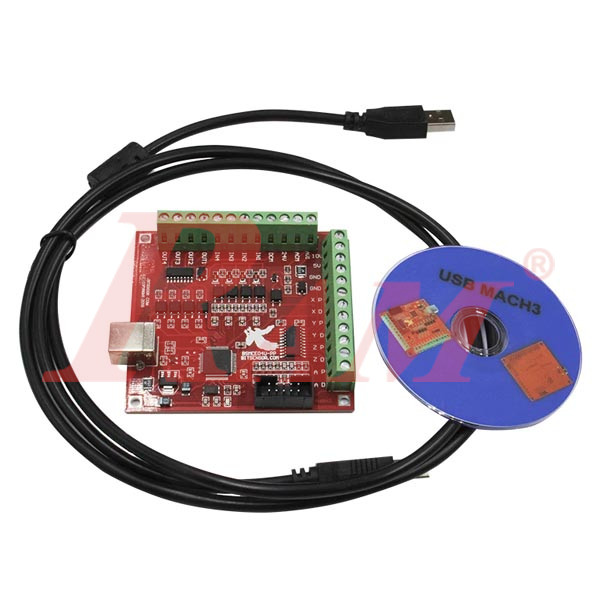

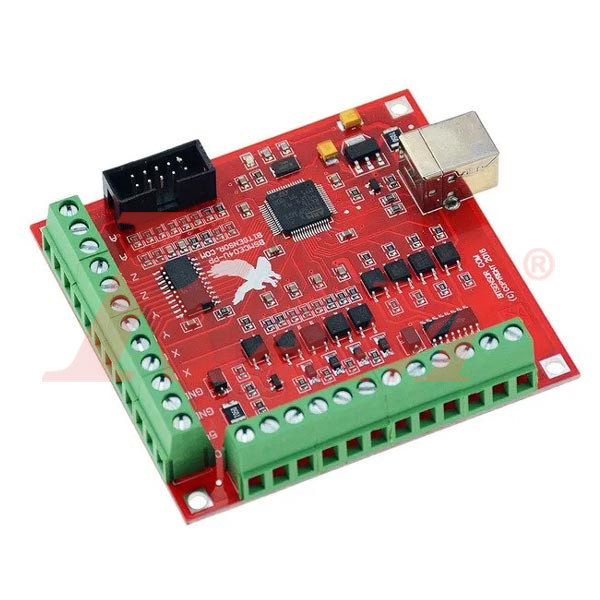

USB Motion Control Interface Board 4 Axis 100KHz (Mach3)

https://www.ram-e-shop.com/web/image/product.template/7877/image_1920?unique=e133d2a


1,250.00 EGP 1250.0 EGP 1,250.00 EGP

1,250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.USB.4AXIS.100KHZ

CNC USB MACH3 100Khz Breakout Board 4 Axis Interface Driver Motion Controller

Description:

  • Support for 4-axis linkage, you can connect four stepper motor drives or servo drives.
  • The maximum step-pulse frequency is 100KHz, which is suitable for the servo or stepping motor.
  • Support automatic probe tool.
  • Support Emergency input.
  • Support four-limit switch.
  • Support for connecting electronic handwheel.
  • Need to use an external 24V DC power supply to isolate USB and external ports, and to make the system more stable.
  • Having a 0~10V output port, you can use mach3 software to control the spindle motor speed.
  • 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero, and other devices.
  • 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating pumps and other devices.
  • 1 status LED, indicates connection status on the board.
  • Size: 8x7.7cm
