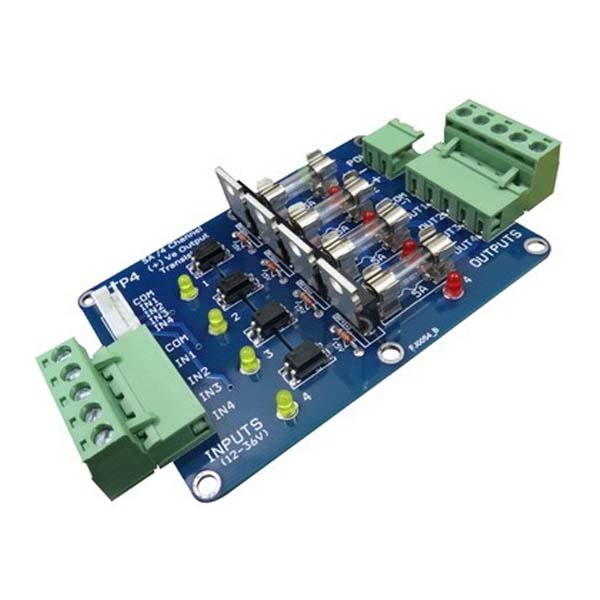

4 Channel PNP +ve O/P Transistor Interface 5A - TP4

https://ram-electronics.odoo.com/web/image/product.template/8416/image_1920?unique=bdbc33c

4-channel positive output transistor module industrial control with opto-isolation.

300.00 EGP 300.0 EGP 300.00 EGP

300.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.TRANSISTOR.TP4

Features:

  • Input power voltage 12-36 VDC.
  • Output current +4A (Continuous) / +15A (Instantaneous).
  • 4 output channels (MOSFET transistor).
  • Opto-isolated outputs for safety.
  • Fuse protection for each output.
  • Switching frequency 1000Hz.
  • Green LED indicator for power input.
  • Yellow LED indicator for each input.
  • Red LED indicator for each output.

TP4 Typical applications:

  1. PLC Control.
  2. Microcontroller applications.
  3. Electromagnetic valves.
  4. DC motor control.
  5. Home intelligent control systems.
