Traffic Light 5V LED Module

35.00 EGP 35.0 EGP 35.00 EGP

35.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.TRAFFIC.LIGHT

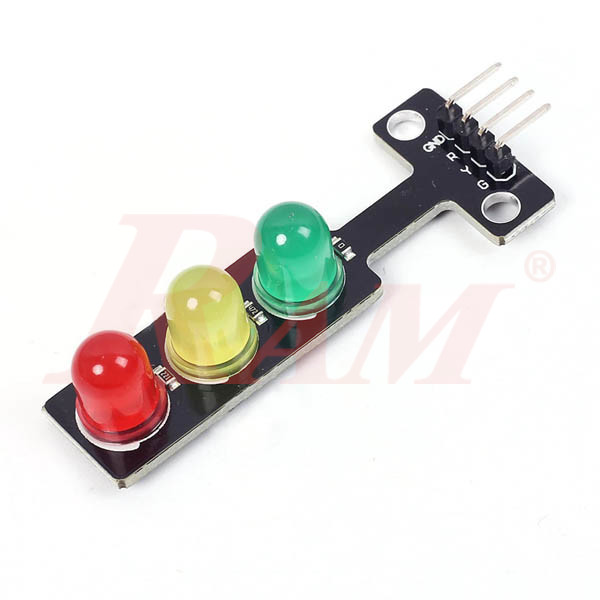

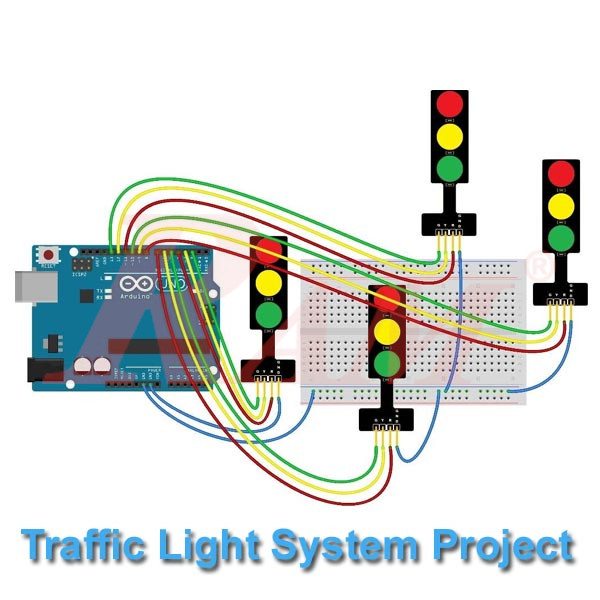

5V Traffic Light LED Display Module for Arduino Red Yellow Green 5mm LED Mini-Traffic Light for Traffic Light System Model


This is a mini-traffic light display module, with high brightness, very suitable for the production of traffic light system models.


  • Small size.
  • Simple wiring.
  • It can work with 3.3V and 5V

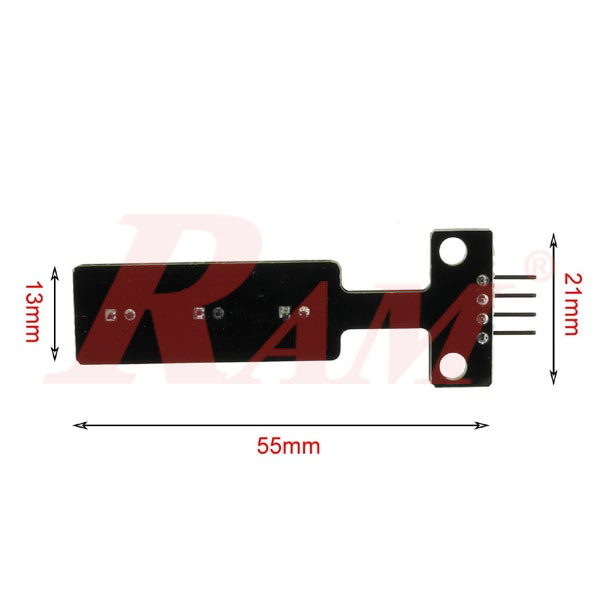

  • Size 55 x 21 x 11 mm
  • Interface: Common cathode, red, yellow & green control Individually


  • LED Traffic Light Simulation module
    LED Colors : Red, Yellow and Green
  • LED Current Rating : Red 13mA; Yellow 13mA; Green 25mA
  • Ready with 4-way header pin, label :
    • G -> Green LED
    • Y ->Yellow LED
    • R -> Red LED
    • GND -> Common Ground (Common Cathode)
  • Compatible with 3.3V or 5V controller: Arduino, Raspberry Pi, Micro:Bit and other Microcontrollers / Microprocessors
  • 5mm diffused type LED
  • Logic high to activate LED
  • Compatible with PWM signal to control brightness
