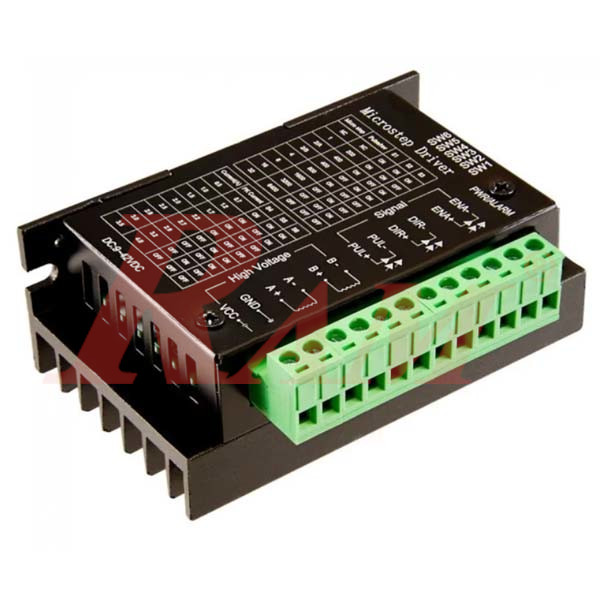

TB6600 - 2 Phase Stepper Motor Driver

https://www.ram-e-shop.com/web/image/product.template/7117/image_1920?unique=e5a2695

Input 9~40 Vdc, Max Output Current 4A

475.00 EGP 475.0 EGP 475.00 EGP

475.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.TB6600.4.5A.DRIVER

Description:

Model TB6600 Stepper Motor 32-segment driver updated version 4.0A 40VDC for CNC milling machine

Specifications:

  • This unit is an upgraded version of TB6600, the breakdown of increase to 32 segments, for high targeting purposes. Applicable stepper motor: 42.57, 86 Phase type phase (4 wire 6 wire 8 wire line).
  • 9 V-40 V DC power supply.
  • H-bridge Bipolar constant-phase flow-driven.
  • The maximum output current of 4.0A eight optional.
  • Up to 32 segments of six types of sub-modes are available.
  • The input signal is high-speed optical insulation.
  • Standard common anode single pulse interface.
  • HOLD function offline.
  • Semi-closed chassis can accommodate the most demanding environment.
  • Provide semi-automatic current locking function.
  • Built-in thermal protection and overcurrent protection.
  • Size: 9.6*5.5*2.7cm
