STM32F401CCU6 ARM STM32 Minimum System Development Board

https://ram-electronics.odoo.com/web/image/product.template/8832/image_1920?unique=67ff25e

The Black Pill

425.00 EGP 425.0 EGP 425.00 EGP

425.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.STM32F401CCU6

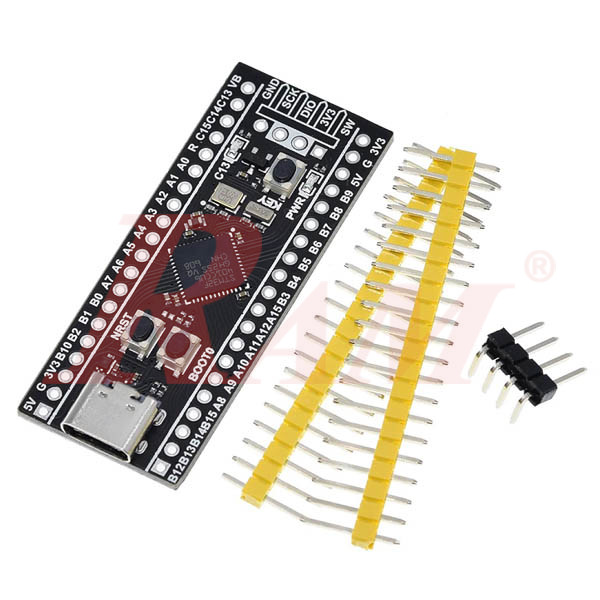

This is STM32F401CCU6 Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F401CCU6.

The board is suitable for learners who want to learn the STM32 microcontroller with ARM Cortex-M4 32-bit core.

Features

  • Microcontroller: STM32F401CCU6
  • Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, memory protection unit, 105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
  • 84 MHz work frequency.
  • 256K flash memory
  • 64K SRAM.
  • 1.7-3.6V power, I/O.
  • 4-26MHz crystal.
  • Onboard the Type-C USB interface, you can give the board power supply and USB communication.

Download
