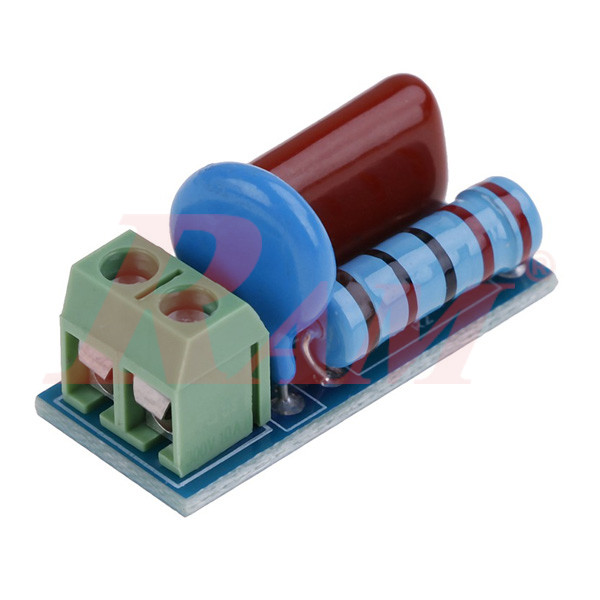

RC Absorption Snubber Circuit Module

https://www.ram-e-shop.com/web/image/product.template/7755/image_1920?unique=571c647

RC Absorption Loop Module

60.00 EGP 60.0 EGP 60.00 EGP

60.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.RC.SNUBBER

Rc absorption snubber circuit module, relay contact protection resistance surge Affordable.

Features:

  • RC absorption circuit module is used to protect the relay or thyristor because it can avoid damage from the inductive electromotive force generated by the inductive load when on or off.
  • Preventing electromagnetic interference and increasing the anti-jamming capability of the microcontroller.
  • For AC or DC 5 ~ 400V inductive load (less than 1000W), protection relay contacts or thyristor. RC absorption circuit, absorb induced electromotive force that from inductive load.
  • With a varistor, to prevent excessive fluctuations in voltage or current is too large and resulting in relay contact adhesion.
  • To provide anti-interference ability of the circuit.
  • Adopt crimp terminals that make wiring more convenient.

Instructions for use:

This module is suitable for circuits containing inductive loads and switching devices such as relays and thyristors. When used, the two connectors of the module connect to two contacts of the relay or parallel with the thyristor, to avoid induced electromotive force damage the relay or thyristor.

Specification:

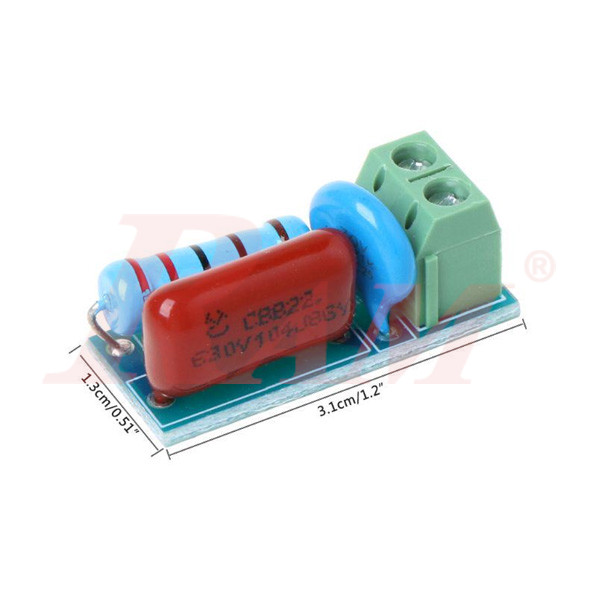

Dimensions: 3.1 x 1.3 cm
