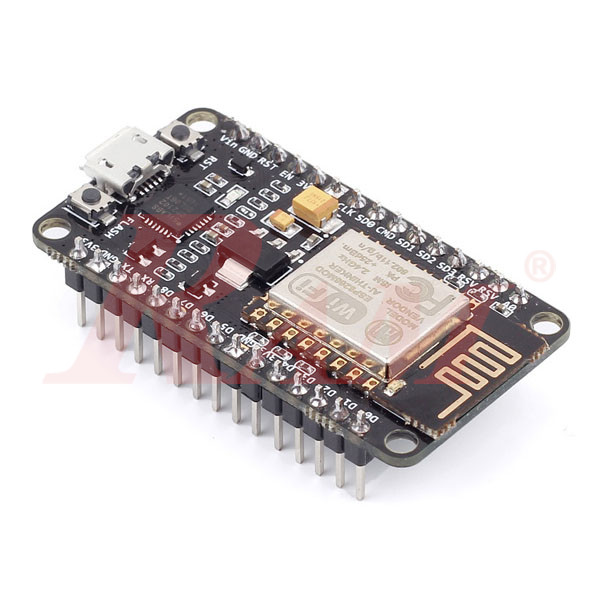

NodeMCU is an open-source development board and firmware based on the widely used ESP8266 -12E WiFi module. It allows you to program the ESP8266 WiFi module with the simple and powerful LUA programming language or Arduino IDE. With just a few lines of code you can establish a WiFi connection and define input/output pins according to your needs exactly like Arduino, turning your ESP8266 into a web server and a lot more. It is the WiFi equivalent of ethernet module.
Now you have Internet of things (IoT) real tool. With its USB-TTL (CP2102 Chip) , the nodeMCU Dev board supports directly flashing from USB port. It combines features of WIFI access point and station + microcontroller. These features make the NodeMCU an extremely powerful tool for Wifi networking. It can be used as an access point and/or station, host a web server, or connect to internet to fetch or upload data.
Features
- Programable WiFi module
- Arduino-like (software-defined) hardware IO
- Can be programmed with the simple and powerful Lua programming language or Arduino IDE
- USB-TTL included plug-and-play

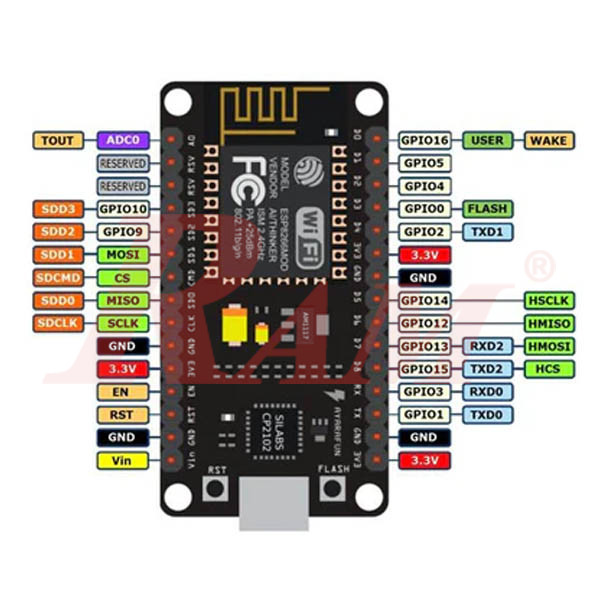

- 10 GPIOs D0-D10, PWM functionality, IIC and SPI communication, 1-Wire, and ADC A0, etc. all in one board
- Wifi networking (can be used as an access point and/or station, host a webserver), connect to internet to fetch or upload data
- Event-driven API for network applications
Specifications
- Operating Voltage: 3.3V
- Input Voltage: 7-12V
- Digital I/O Pins (DIO): 16
- Analog Input Pins (ADC): 1
- UARTs: 1
- SPIs: 1
- I2Cs: 1
- Flash Memory: 4 MB
- SRAM: 64 KB
- Clock Speed: 80 MHz
- USB-TTL based on CP2102 is included onboard, Enabling Plug n Play
- PCB Antenna
- Small Sized module to fit smartly inside your IoT projects.
