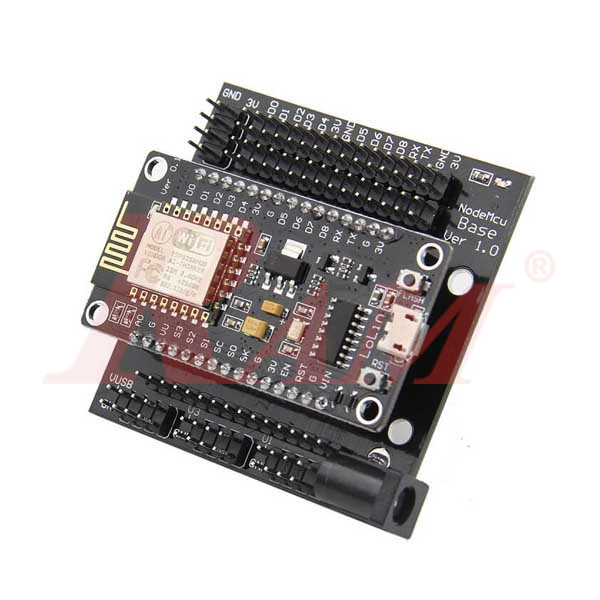

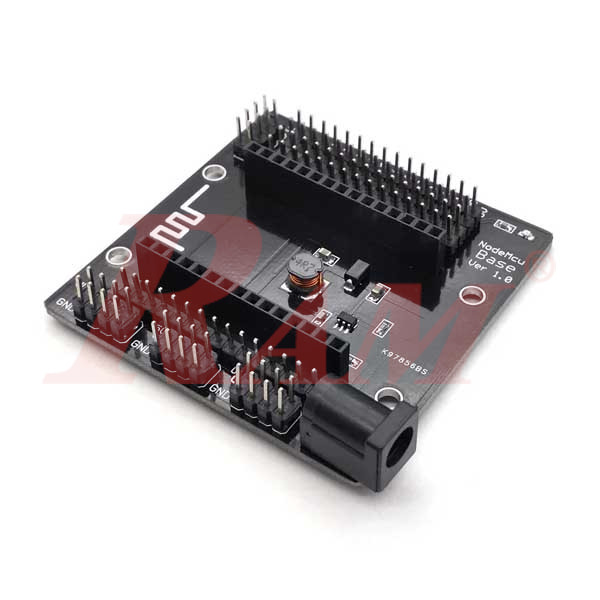

NodeMCU Lua V3 Baseboard Breakout Board

90.00 EGP 90.0 EGP 90.00 EGP

90.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.NODE.BASE.V3

NodeMCU V3 ESP8266 Serial Port Baseboard Lua WIFI Development Board.

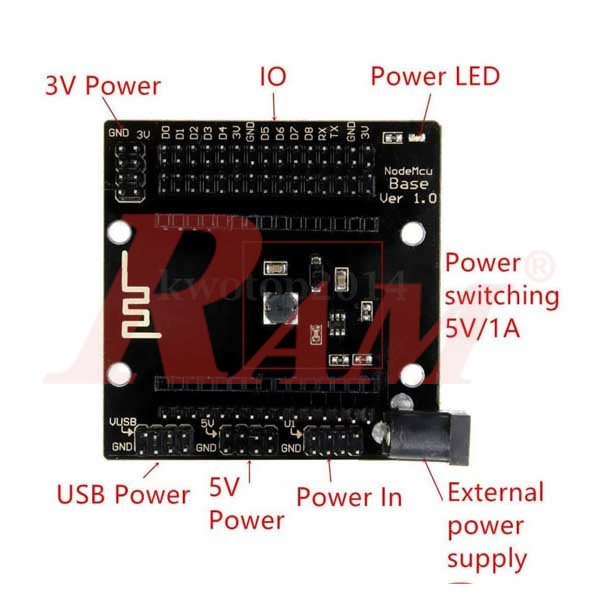

  • The perfect solution for breaking out the pins from Lua V3 Nodemcu.
  • USB power output only for NodeMCU v3
  • Lead out all the IO ports of the ESP-12E development board
  • Lead out the pins of 5V and 3.3V power supply
  • Convenient to connect with peripheral modules
  • Onboard 5V / 1A DC-DC step-down converter circuit
  • Onboard power indicator
  • With DC power jack 6-24V.
  • The spacing between mounting headers is 25.5 mm.
  • Length: 64mm
  • Width: 60mm
  • Height: 14mm

NOTE: the board comes without the NODE-MCU board.
