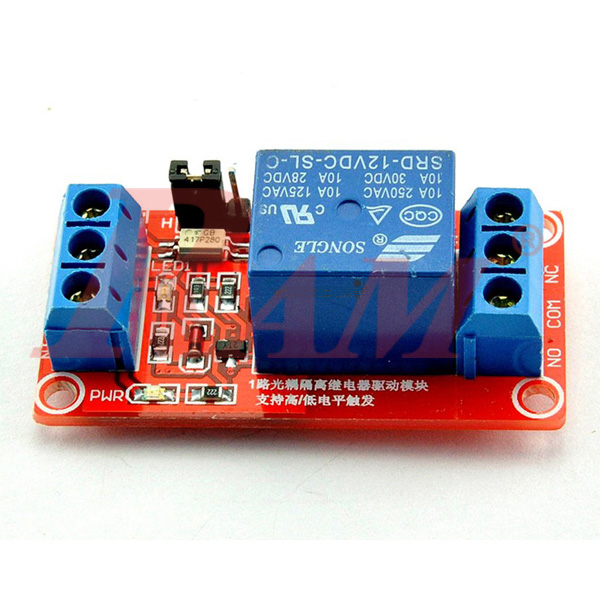

1 Output Relay Module Works on 5V Signal (SKU#KIT.M2)
With Optocoupler Isolation & High/Low Trigger Selection
Internal Reference:
KIT.M2.1RELAY
Description:
Using SMD optocoupler isolation The module can be high or low trigger by a jumper setting Fault-tolerant design, even if the control line is broken, the relay will not operate The power indicator (green), the relay status indicator (red) All connection interfaces through a direct connection terminal block
Specification:
- Maximum load: AC 250V/10A, DC 30V/10A
- Trigger current: 15mA
- Working voltage: 5V
- Module size: 50 x 26 x 18.5mm (L x W x H)
- Four mounting bolts holes, diameter 3.1mm
Module interface:
- DC+: positive power supply (VCC) 5Vdc
- DC-: negative power supply (GND)
- IN: can be high or low level control relay
Relay outputs:
- NO: normally open relay interface
- COM: Common Interface RelaysNC: normally closed relay interface
High/Low level trigger options:
- It is low level trigger when jumper connect to LOW pin
- It is high level trigger when jumper connect to HIGH pin
Very good to use it with motor switching control or pump starting applications with your microcontrollers , arduino boards or PC port.
