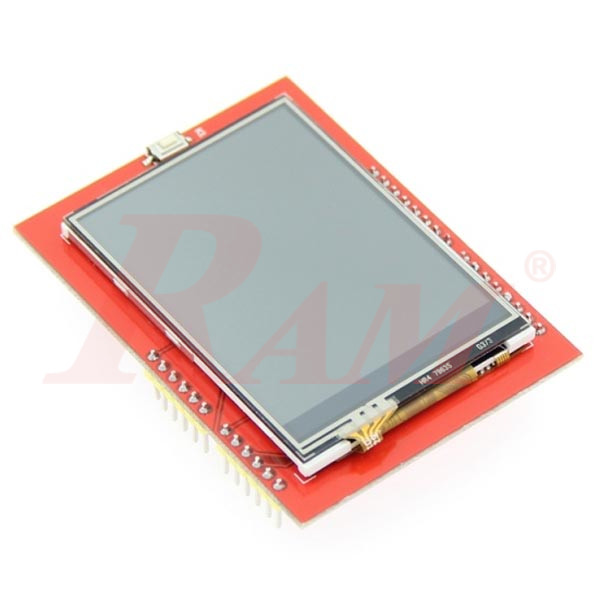

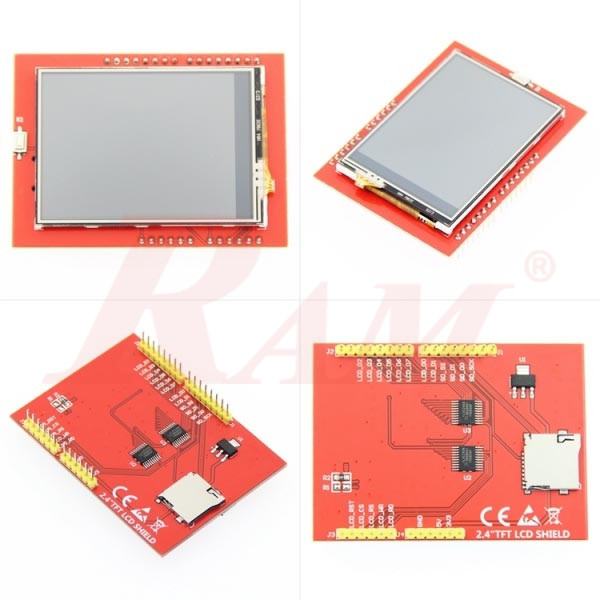

LCD TFT 2.4 inch Touch Display for Arduino UNO & Mega2560

Touch Screen

550.00 EGP 550.0 EGP 550.00 EGP

550.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.LCD.TFT2.4.TS

Product Description

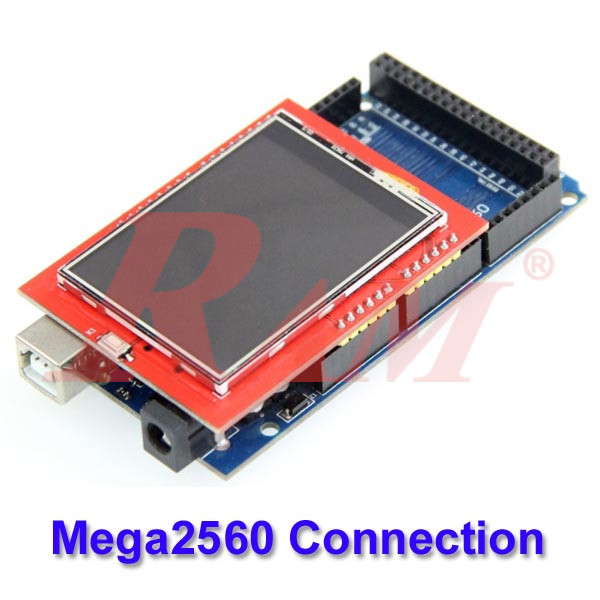

  • Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
  • 320X240 resolution, clear display, support for touch function
  • Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
  • Easy to expand the experiment with SD card slot
  • Provides an Arduino library with a rich sample program
  • Military-grade process standards, long-term stable work
  • Provide underlying driver technical support

Product Parameters

Display ColorRGB 65K color
Screen Size 2.4 (inch)
Driver ICILI9341 (ST7789)
Resolution320*240 (Pixel)
Module Interface8-bit parallel interface
Active Area 48.96*36.72(mm)
Module PCB Size72.20*52.7(mm)
Operating Temperature-20℃~60℃
Storage Temperature-30℃~70℃
Operating Voltage5V/3.3V
Power ConsumptionTBD
Product Weight(Package containing)39(g)

Interface PIN Definition

NumberPin LabelPin Description
1LCD_RSTLCD bus reset signal, low level reset
2LCD_CSLCD bus chip select signal, low level enable
3LCD_RSLCD bus command/data selection signal,

low level: command, high level: data

4LCD_WRLCD bus write signal
5LCD_RDLCD bus read signal
6GNDPower ground
75V5V power input
83V33.3V power input, this pin can be disconnected
9LCD_D0LCD 8-bit data Bit0
10LCD_D1LCD 8-bit data Bit1
11LCD_D2LCD 8-bit data Bit2
12LCD_D3LCD 8-bit data Bit3
13LCD_D4LCD 8-bit data Bit4
14LCD_D5LCD 8-bit data Bit5
15LCD_D6LCD 8-bit data Bit6
16LCD_D7LCD 8-bit data Bit7
17SD_SSSD card SPI bus chip select signal, low level enable
18SD_DISD card SPI bus MOSI signal
19SD_DOSD card SPI bus MISO signal
20SD_SCKSD card SPI bus clock signal
