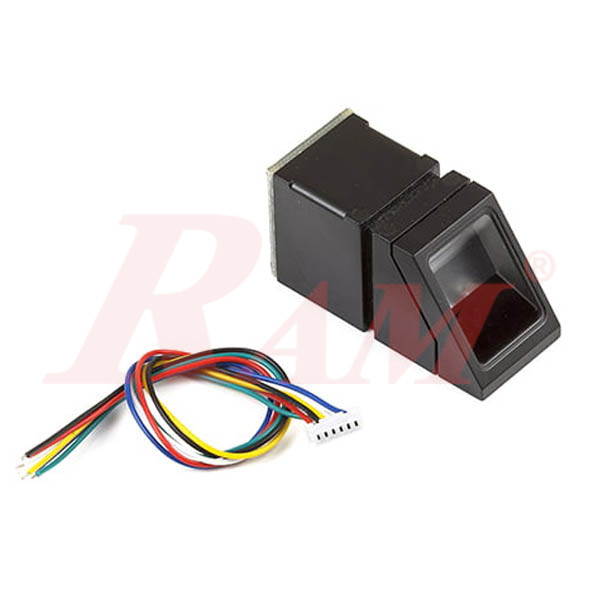

Fingerprint Module R307

https://ram-electronics.odoo.com/web/image/product.template/8781/image_1920?unique=1e40977

Finger Print TTL UART

975.00 EGP 975.0 EGP 975.00 EGP

975.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.FINGERPRINT.R307

R307 is an optical fingerprint verification module with TTL UART interface. It consists of optical fingerprint sensor, high-performance DSP processor and Flash.
It has many functions such as Fingerprint Sensor, fingerprint verification, fingerprint upload, and download.

User can easily develop powerful fingerprint verification application systems based on the rich collection of controlling commands provided by the module. The R307 can be easily used with Arduino, Tiva C, STM, and Raspberry Pi.

Specifications

  • Operating Voltage: 4.2 ~ 6VDC
  • Operating Current: <50mA(Input voltage 5V)
  • Search Time: <1 second
  • Fingerprint image input time: <0.3 second
  • Window area: 14x18 mm
  • User Storage Capacity: 1000 image
  • Interface Protocol: Standard serial interface (TTL level)
  • Communication Baud Rate: 57600 bps (Default Value)

Download

DATASHEET
