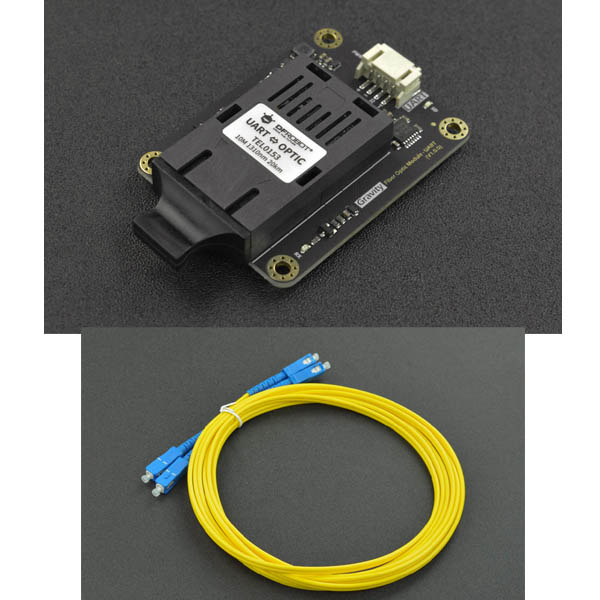

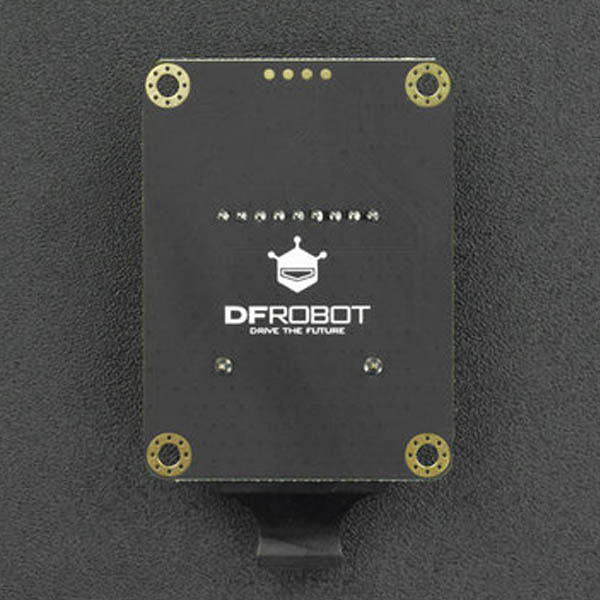

UART Fiber Optic Transceiver Module + 3mm SC-SC Single Mode Duplex Fiber Jumper (3m)

2,500.00 EGP 2500.0 EGP 2,500.00 EGP

2,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: KIT.FIBER.TXRX.3M

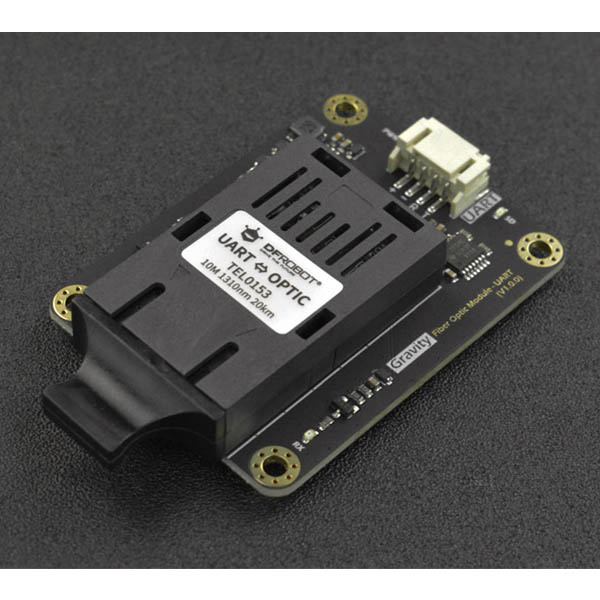

Still make do with the hard and thick shielded twisted pair for remote signal-transmitting? And even drop the baud rate again and again just for transmission stability? Now get rid of these problems by using this Gravity: UART Fiber Optic Transceiver Module from DFRobot!

With complete electrical isolation for preventing electromagnetic interference, this module runs at 2000000 baud at any time within a distance of up to 10km. Besides, it features lightning protection and can share cable trunking with strong power. Also, users can use it with a passive optical splitter to realize one-to-many star networking.

Two transceiver modules for only half the price of shielded twisted pair can provide users with long-distance & interference-free fiber-optic communication, good value for money!

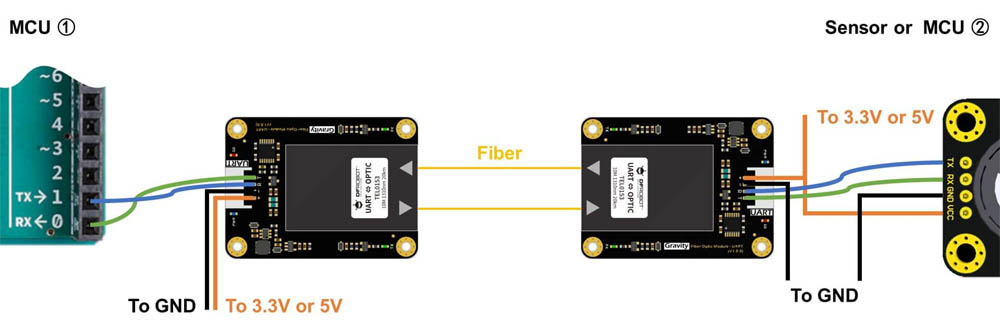

Gravity: UARTUART interface, connect to MCU or sensor
PWR LEDPower indicator, turns ON when powered on
SD LEDIndicator for optical fiber disconnection, which lights up when the fiber optic disconnection is detected
TX LEDIndicator for fiber optic transmitting, which blinks when transmitting signal
RX LEDIndicator for fiber optic receiving, which blinks when receiving signal

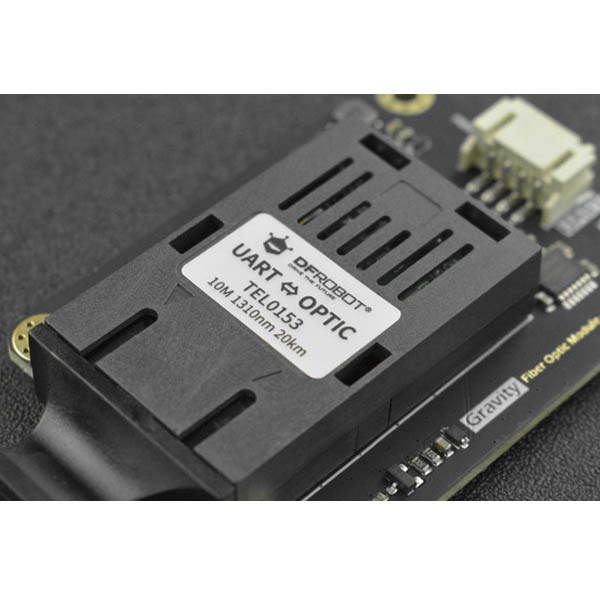

SC Fiber Optic InterfaceConnect to SC fiber optic interface

SD LED can not show all the fiber disconnections or unstable transmissions. Please use a red pen, optical power meter and other tools to check error when a connection problem occurs.


  • With complete electrical isolation
  • Lightning protection


  • Fiber-optic communication
  • One-to-many star networking


  • Supply Voltage: 3.3V~5V
  • Signal Voltage: 3.3V~5V
  • Maximum Speed: 2000000 baud
  • Communication Distance: 10km
  • Operating Wavelength: 1310nm
  • Fiber Optic Type: Single Mode
  • Fiber Optic Interface: SC
  • Operating Temperature: 0~70℃

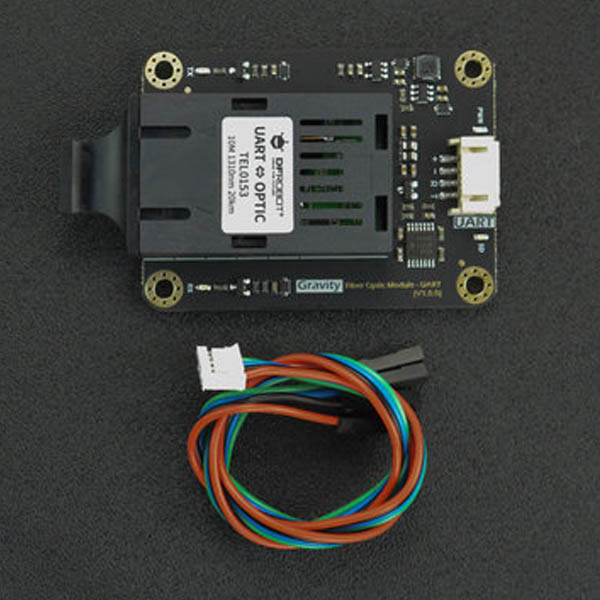

  1. Gravity: UART Fiber Optic Transceiver Module x1
  2. Gravity 4P Connector x1

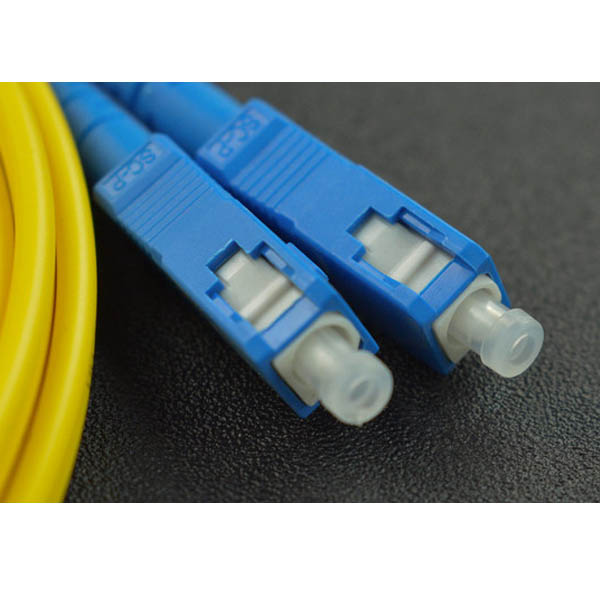

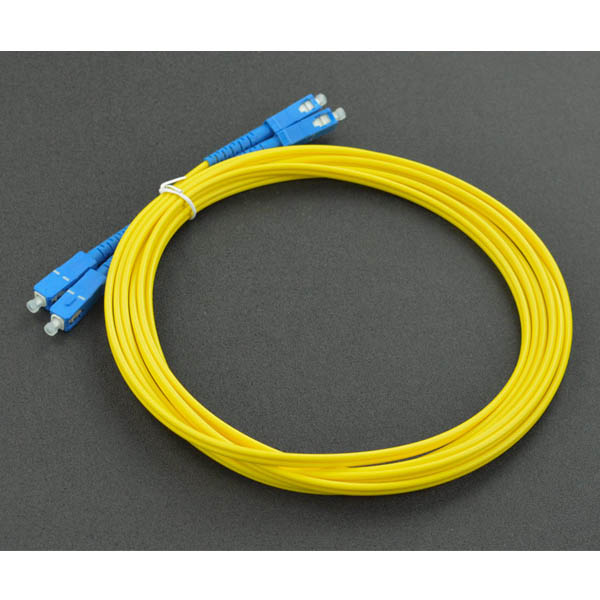

  3. 3mm SC-SC Single Mode Duplex Fiber Jumper (3m)
