Description

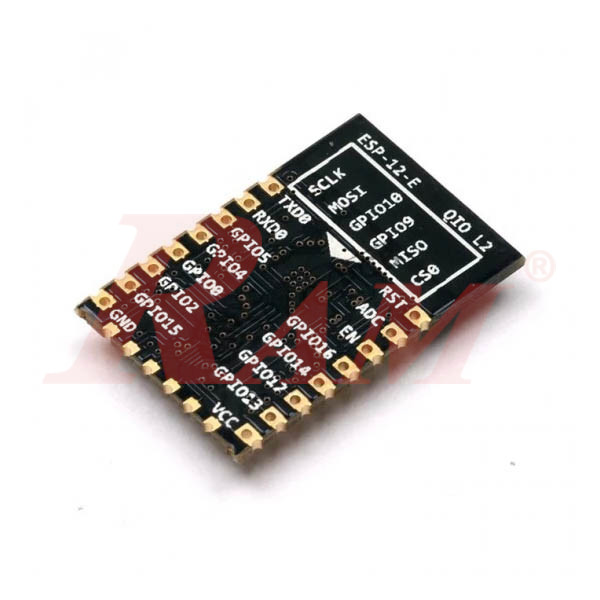

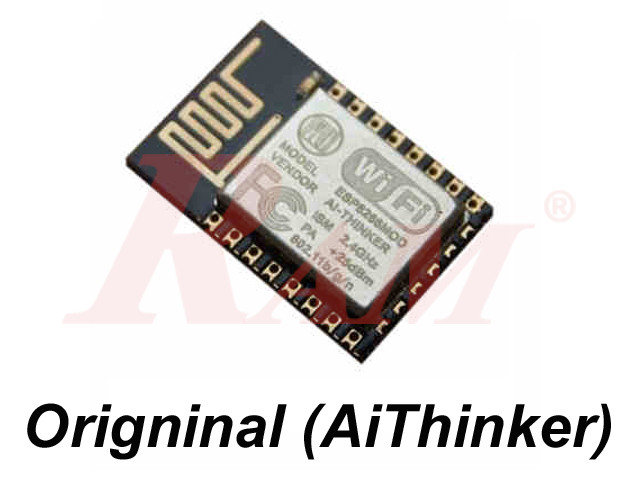

The ESP8266-12E WiFi Serial TTL Module is a versatile and compact module that provides WiFi connectivity for various electronic projects. It is based on the ESP8266 chip, which allows for easy integration of WiFi capabilities into your projects. The module supports serial communication via TTL interface, making it easy to connect to microcontrollers and other devices.
Key features of the ESP8266-12E WiFi Serial TTL Module include:
- Integrated WiFi connectivity for wireless communication
- Support for 802.11 b/g/n protocols
- Serial communication interface for easy integration with microcontrollers
- Compact size for easy integration into projects
- Low power consumption for energy-efficient operation
- Support for AT commands for easy configuration
Overall, the ESP8266-12E WiFi Serial TTL Module is a reliable and cost-effective solution for adding WiFi connectivity to your projects. It is widely used in IoT applications, home automation, and other projects that require wireless communication capabilities.
Technical Specifications ESP8266-12E module:
- Chipset: ESP8266EX
- Operating Voltage: 3.3V
- Communication Interface: UART
- Wi-Fi Standard: 802.11 b/g/n
- Wi-Fi Modes: Station, SoftAP, Station+SoftAP
- Frequency Range: 2.4GHz-2.5GHz
- Flash Memory: 4MB
- GPIO Pins: 17
- ADC Pins: 1 (10-bit resolution)
- Deep Sleep Power Consumption: <10uA
- Operating Temperature: -40°C to 125°C
- Dimensions: 24mm x 16mm x 3mm
