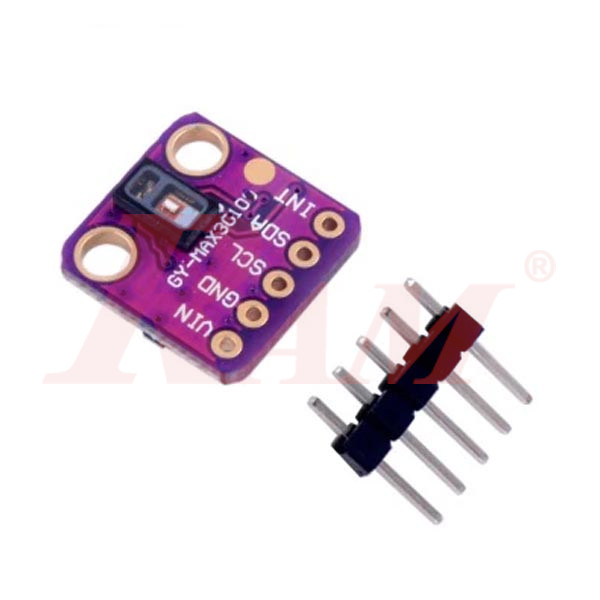

MAX30102 EGC Heart Rate and Oximeter Sensor

GY-MAX30102 Heart Rate Click Sensor, Optical Heart-Rate Breakout Sensor Module for Arduino, Heart-rate monitor & Pulse Oximeter SpO2

The MAX30102 is an integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection.

The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices. The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs.

Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Features

• Integrated cover glass for optimal, reliable performance
• Work with very low power consumption for mobile devices
• Programmable sample rate and LED current to save energy
• The ability to quickly transfer data
• High sampling rates
• Solid immunity to movement artifacts
• High SNR
• Power supply 3,3V-5V
• Operating temperature: -40°C to 85°C


Download

• IC MAX30102 Datasheet
• Example
