General Description

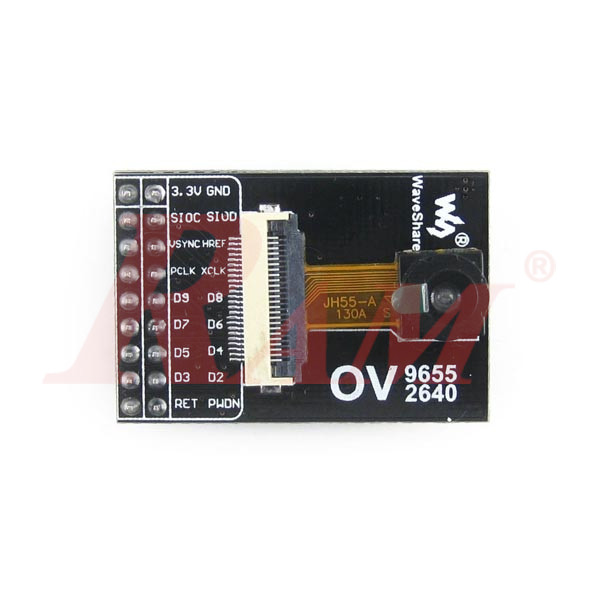

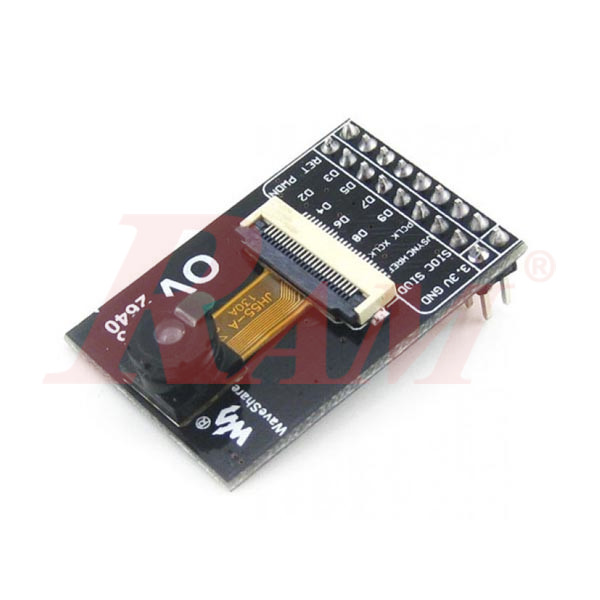

The OV9656 CAMERACHIP™ image sensor is a low-voltage CMOS device that provides the full functionality of a single-chip SXGA (1280x1024) camera and image processor in a small footprint package.
The OV9656 provides full-frame, sub-sampled, scaled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This product has an image array capable of operating at up to 15 frames per second (fps) in SXGA resolution with complete user control over image quality, formatting and output data transfer.
All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control, white pixel canceling, noise canceling, and more, are also programmable through the SCCB interface. In addition, OmniVision CAMERACHIP sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, etc., to produce a clean, fully stable color image.
Features
- PIXELS: 1.3M
- SENSOR: OV9655
- Supply voltage: 3.3V
- IO voltage: 1.7V ~ 3.3V DC
- BEST RESOLUTION: SXGA 1280x1024
- DIMENSION (MM): 35.7x23.9
- Output format: YUV/YCbCr 4:2:2 RGB565/555 GRB 4:2:2 Raw RGB Data
- Image output speed: SXGA 15fps VGA, CIF, and downscaling 30fps
- Output format: YUV/YCbCr 4:2:2 RGB565/555 GRB 4:2:2 Raw RGB Data
