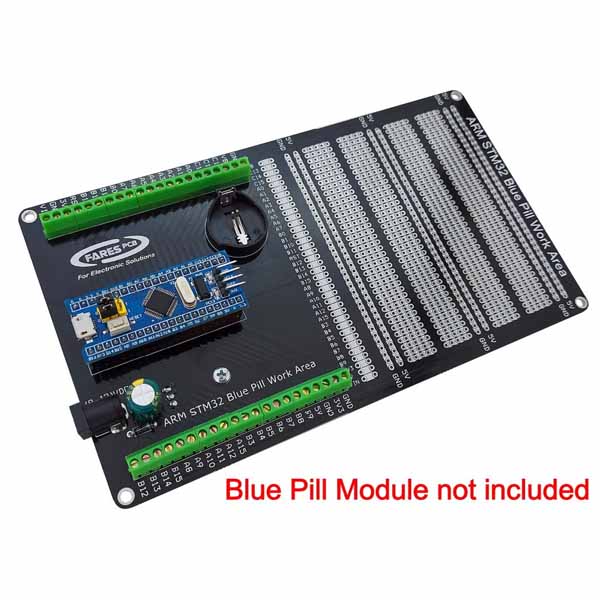

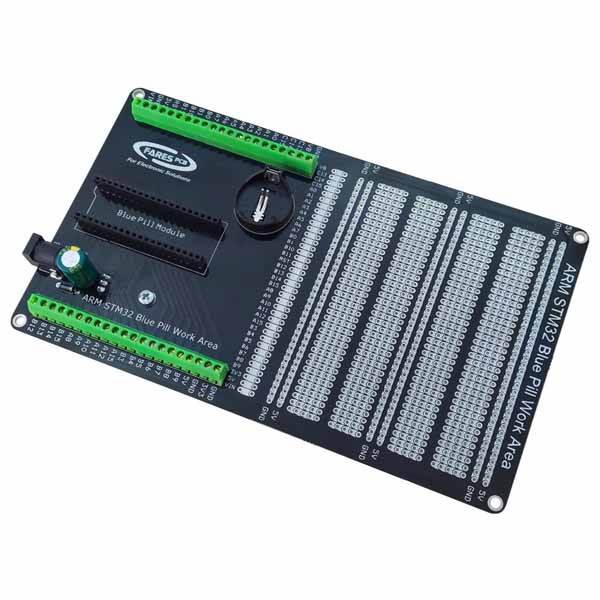

Project Working Area for ARM STM32F103C Blue Pill

https://ram-electronics.odoo.com/web/image/product.template/8632/image_1920?unique=bdbc33c

275.00 EGP 275.0 EGP 275.00 EGP

275.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: KIT.ARM.STM.PROJECT

General Description

Blue Pill development board is based on STM32F103C8T6 32-bit Cortex-M3 RISC ARM core. This module contains the essential components and circuits to build your own ARM-based system. Blue Pill project kit is a versatile kit for easy soldering components on a test board and building fast projects based on Blue Pill development board. Double layer PCB is used to enable components soldering on either face.

Features:

  • Project Kit can be powered from any general DC adaptor 9-12V thanks to on-board 5V regulator.
  • On-board reverse polarity protection. All Blue Pill pin headers are exposed to screw clamp terminals for easy access.
  • Large size work area 144 horizontal lines X 5 points, 36 X 3 vertical 5V lines, 36 X 3 vertical GND lines, 36 lines X 2 points (Blue pill pins in addition to power rails GND, 5V, VIN).
  • Project Kit provides a CR2032 socket for 3V battery (no battery included).
  • Dimensions: 185X108X20 mm

NOTE:  STM32F103C8T6 module itself is not included
