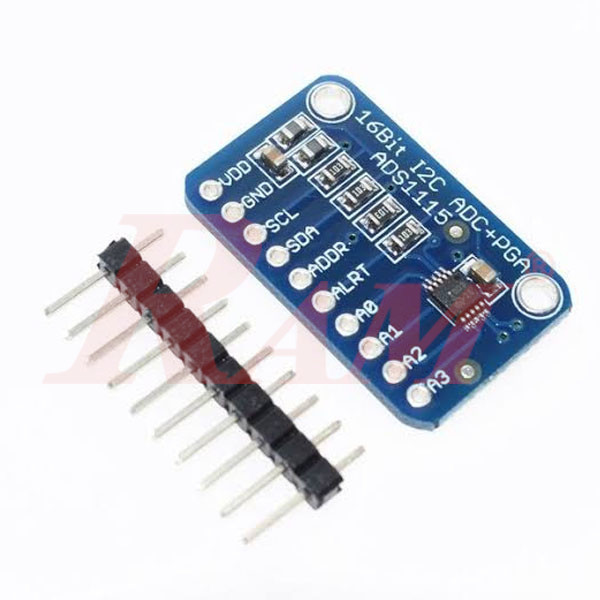

ADS1115 - 16 Bit I2C ADC Module
4 Channel Analog to Digital Converter
Internal Reference:
KIT.ADS1115.ADC
16 Bit I2C ADS1115 Module ADC (Analog to Digital Converter) 4 channel with Pro Gain Amplifier for Arduino & Raspbri Pi
- ADC Bit rate: 16-bit
- Interface Type: I2C
- Channels: 4 Channel AN0 AN1 AN2 AN3 or 2 differential inputs
- Input voltage: 2.0-5.5v
- Channel input voltage: 0-VDD
- Continuous Mode: Only 150μA
- Single-Shot Mode: Auto Shut-Down
- PROGRAMMABLE DATA RATE: 8sps-860sps
- Input range programmed control, 7 types of input ranges:
- -0.256V ~ + 0.256V
- -0.512V ~ + 0.512V
- -1.024V ~ + 1.024V
- -2.048V ~ + 2.048V
- -4.096V ~ + 4.096 V
- -6.144V ~ + 6.144V
- I2C 7-bit addresses between 0x48-0x4B
- Size:18mm*28mm
