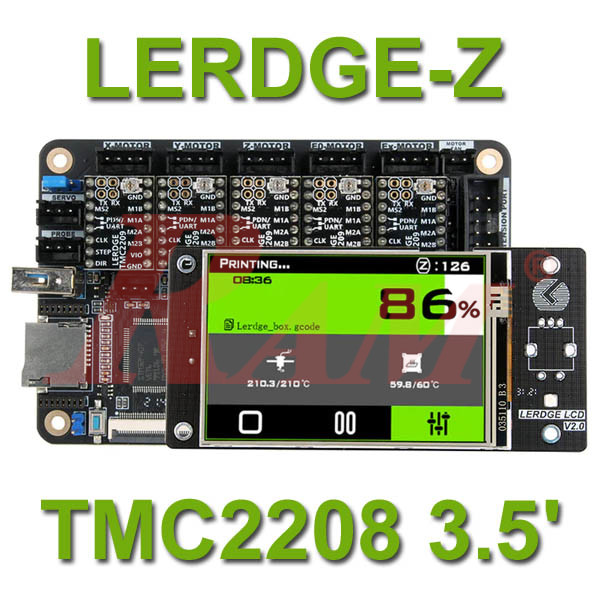

LERDGE-Z Board 3.5" LCD + 5 Drivers TMC2208 (SKU#3D1019)

LERDGE-Z 32-Bit Control Board Kit

Includes 3.5" Touch Screen & 5x TMC2208 Silent Drivers

The LERDGE-Z is a highly integrated, high-performance 32-bit controller designed to be the "all-in-one" heart of your 3D printer. It combines the ease of use found in the Lerdge-X with the expanded functionality of the Lerdge-K, offering a powerful ARM Cortex-M4 core and a beautiful full-color touch interface.

This kit comes pre-packed with 5x TMC2208 drivers, famous for their "StealthChop" technology which makes stepper motors nearly silent.

Key Features

• 32-Bit ARM Core: Powered by a high-speed processor for smooth calculation and stable performance.
• 3.5-inch Full Color Touch Screen: Intuitive UI for easy calibration, file management, and real-time monitoring.
• Silent Printing: Includes 5x TMC2208 drivers supporting 256 microsteps for silky-smooth and quiet motion.
• 5-Axis Support: Configurable as XYZE + an additional EX axis for dual extrusion or synchronized movement.
• Offline Printing: Supports both TF cards and U-disk (USB 2.0/3.0) for reliable printing without a PC connection.
• Expandable: Compatible with Wi-Fi modules, power monitoring (resume print), and filament sensor modules.

Technical Specifications

What’s in the Box?

• 1 * Lerdge-Z motherboard
• 1 * 3.5 inch Press screen
• 5 * TMC2208 Drivers
• 1 * Power cord
• 1 * 30cmFFC cable
• 1 * Slector + Nope
• 5 * TMC2208 heat sink
• 1 * Screwdriver
• 1 * Press pen

Applicable Structure：

XYZ(Ultimaker, Makerbot), Detla, CoreXY(Hbot) and CoreXZ.

Applicable slicing software:

Simplify3D, PrusaSlicer, Slic3r, Cura, Repetier, Builder, Skeinforge.

Package Contents:

• 1 * Lerdge-Z motherboard
• 1 * 3.5 inch Press screen
• 5 * TMC2208 Drivers
• 1 * Power cord
• 1 * 30cmFFC cable
• 1 * Slector + Nope
• 5 * TMC2208 heat sink
• 1 * Screwdriver
• 1 * Press pen
