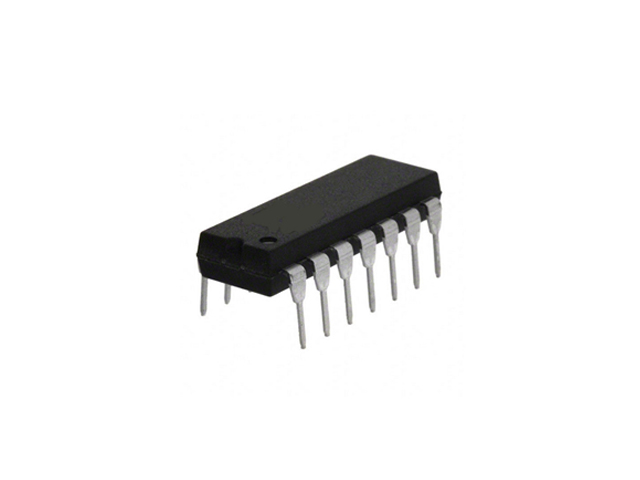

IR2110

https://www.ram-e-shop.com/web/image/product.template/5961/image_1920?unique=6d119cf

High & Low side MOSFET & IGBT driver

110.00 EGP 110.0 EGP 110.00 EGP

110.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: IR2110

  • The IR2110 is high voltage, high speed power MOSFET and IGBT drivers with independent high and low side referenced output channels.
  • Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.
  • Logic inputs are compatible with standard CMOS or LSTTL output, down to 3.3V logic.
  • The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.
  • Propagation delays are matched to simplify use in high frequency applications.
  • The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 500 or 600 volts - in 14-DIP Package.
