Hot Air 996D Brushless 2 in 1 LCD

Automatic Digital Soldering SMD Rework Station

5,950.00 EGP 5950.0 EGP 5,950.00 EGP

5,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: HOT.AIR.996D

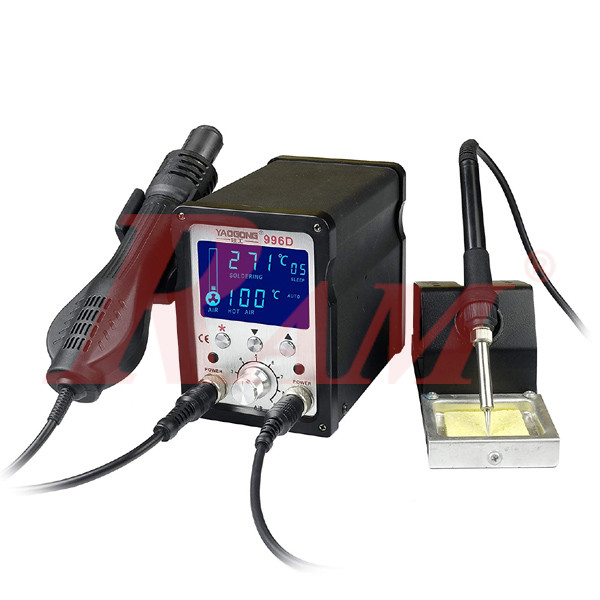

996D Hot Air Brushless 2 in 1 ESD Safe LCD Automatic Digital Soldering SMD Rework Station

Product Characteristics:

  1. Multifunctional Integrated Desoldering Maintenance System Combined by Rework Station and Soldering Station.
  2. The core of the whole machine is controlled by a single microwave chip to make sure of temperature accuracy and stability of the rework station and soldering station, not simply combined by the two pieces of equipment.
  3. Clear digital display of the current working temperature and conditions
  4. Temperatures of the rework station and soldering station are continuously adjusted by digital buttons to meet the needs of different workplaces.
  5. The two stations can work separately.
  6. Intuitive fault indication function.
  7. LED digital display, anti-static handle.

Rework Station:

  • Working Voltage: AC220V ± 10% 50Hz
  • Output Power: 700W
  • Temperature Range: 100°C~450°C
  • Temperature Stability: ±5°C
  • Air Flow: 120L/min (max)

Soldering Station:

  • Output Power: 50W

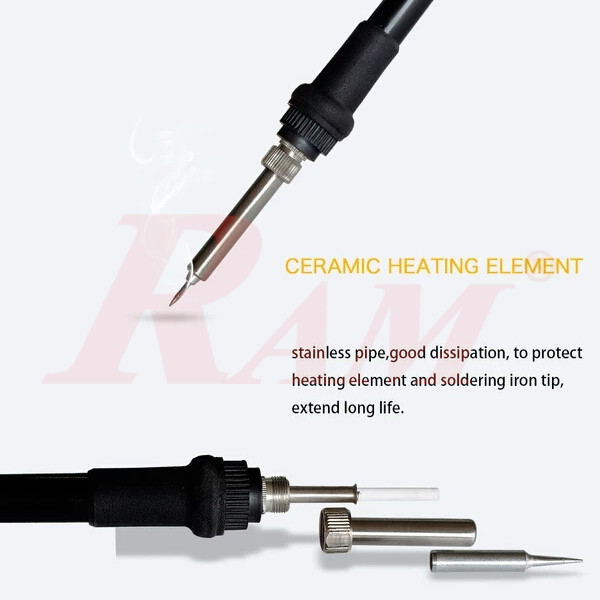

  • Ceramic Heater
  • Temperature Range: 200°C-450°C
  • Temperature Stability: ±2°C(static)
  • Ground Impedance: <2 Ohm
  • Ground Voltage: <3mV
