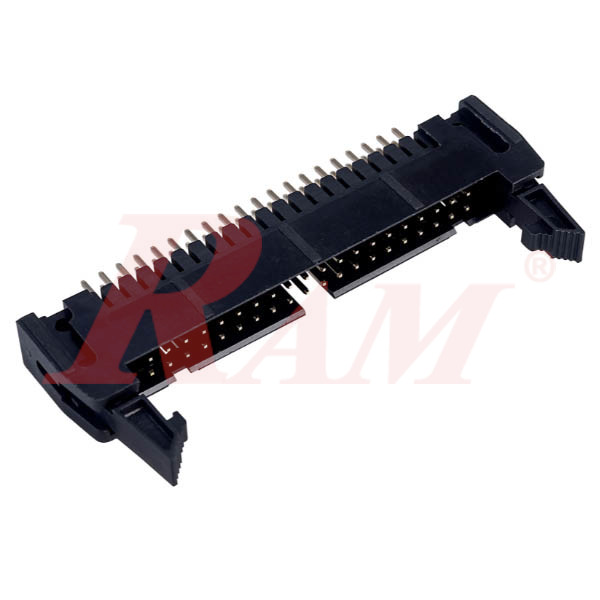

IDC40 Polarized Male Headers with Latch Straight (FRC-40)

https://ram-electronics.odoo.com/web/image/product.template/6289/image_1920?unique=6ac39e2

15.00 EGP 15.0 EGP 15.00 EGP

15.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: FRC.40PS

Features

  • 40-Way, male IDC connector plug, 2-Row
  • Straight orientation
  • Long latches
  • Through-hole mounting
  • 2.54mm Standard pin spacing
  • Operating temperature range of -45˚C to +105˚C
  • Low-resistance gold-plated contacts
  • Current rating of 1 A
  • Insulation resistance of 5,000 mΩ a minute at 500Vdc
