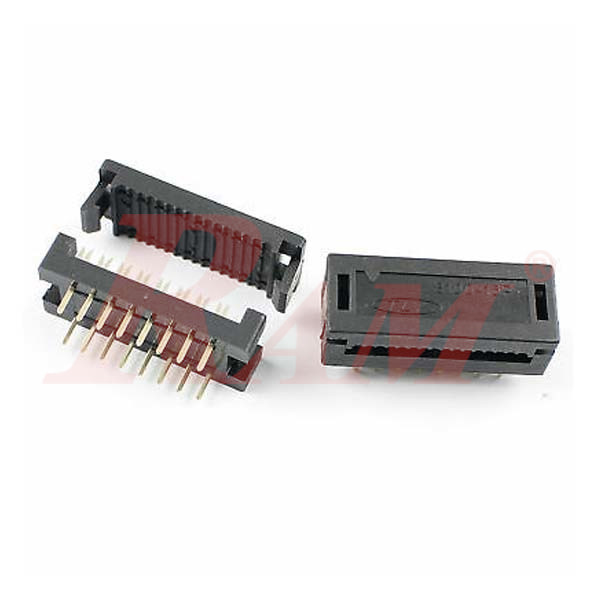

IDC IC Male 2.54mm 16pin (2x8)

Ribbon Cable Transition Connector 3100-16P

15.00 EGP 15.0 EGP 15.00 EGP

15.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days

Internal Reference: FC.IC.16PIN

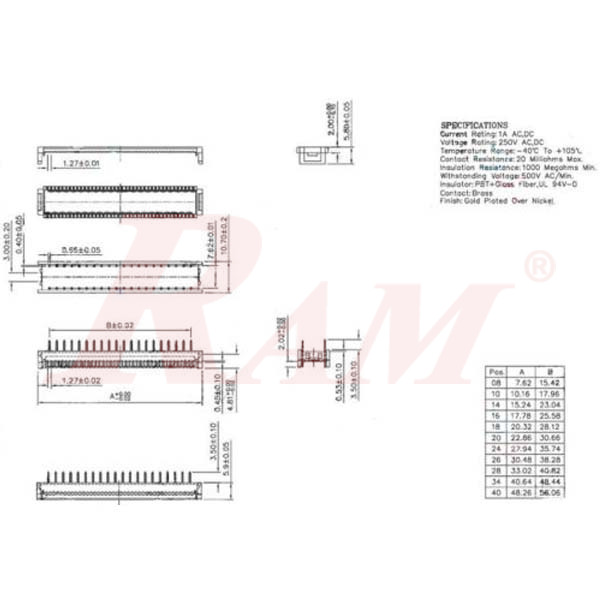

  • Contacts Pitch 2.54mm (2.54*7.62mm)
  • Gender: Male
  • Connector type: IDC Transition
  • Type of Row: Double-Row
  • Ribbon cable pitch 1.27mm


  • Rated current: 1A AC, DC
  • Voltage rating: 250V, AC, DC
  • Withstanding Voltage: 500V AC/Min
  • Insulation Resistance: 1000MΩ Min.
  • Contact Resistance:20 MΩ Min.
  • Temperature range:-40°C to +105°C
