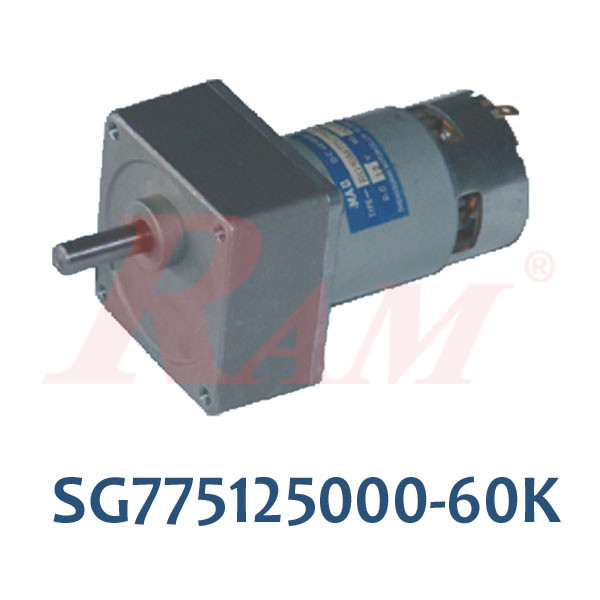

DC Geared Motor 12Vdc 83 rpm 2.79 N.m - Model SG775125000-60K

https://ram-electronics.odoo.com/web/image/product.template/6873/image_1920?unique=dd9dd5e

Torque 87 Kg.cm (at maximum efficiency)

1,950.00 EGP 1950.0 EGP 1,950.00 EGP

1,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: DC.SG775125000.60K

DC Geared Motor SG775125000 Series - 12VDC HIGH POWER LONG LIFE

Specification of geared motor:

  • Rated Voltage: 12Vdc
  • No Load Current: 500mA
  • No Load Speed: 83 r/min
  • Load Torque Current (With Load): 4A
  • Load Torque Speed (With Load): 63 r/min
  • Torque at maximum efficiency 87 kg.cm
  • Load Torque: 28.5 kg.cm (2.79 N.m)
  • Output Power: 20 W
  • Stall Current: 14A
  • Rotation direction: CW/CCW
  • Motor Weight: 800~1000 gm

Note: We sell compatible Encoder for this motor at our online store.
