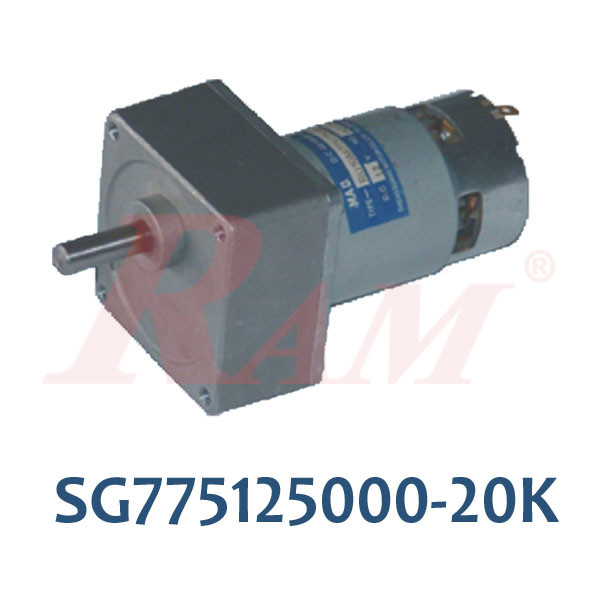

DC Geared Motor 12Vdc 250 rpm 1.03 N.m - Model SG775125000-20K

https://www.ram-e-shop.com/web/image/product.template/6691/image_1920?unique=95d8082

Torque at maximum efficiency 33 kg.cm

1,950.00 EGP 1950.0 EGP 1,950.00 EGP

1,950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: DC.SG775125000.20K

DC Geared Motor SG775125000 Series - 12VDC HIGH POWER LONG LIFE

Specification of geared motor:

  • Rated Voltage: 12Vdc
  • No Load Current: 500mA
  • No Load Speed: 250 r/min
  • Load Torque Current (With Load): 4A
  • Load Torque Speed (With Load): 188 r/min
  • Torque at maximum efficiency 33 kg.cm
  • Load Torque: 10.5 kg.cm (1.03 N.m)
  • Output Power: 20 W
  • Stall Current: 14A
  • Rotation direction: CW/CCW
  • Motor Weight: 800~1000 gm

Note: We sell compatible Encoder for this motor at our online store.
