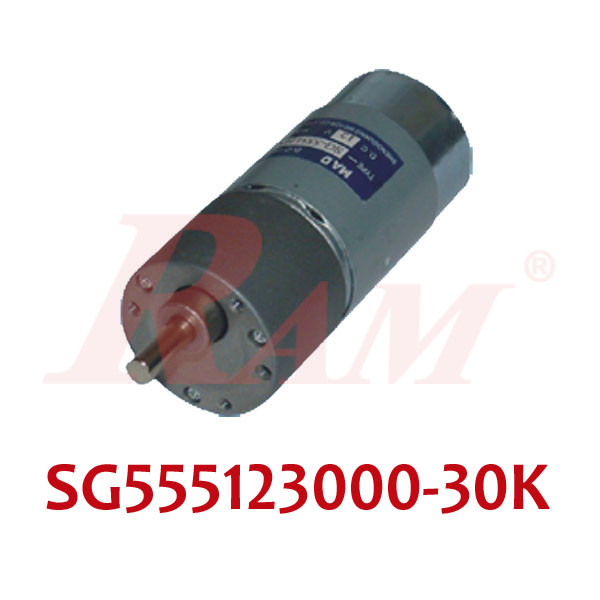

DC Geared Motor 12Vdc 100 rpm 0.34 N.m - Model SG555123000-30K

https://ram-electronics.odoo.com/web/image/product.template/6690/image_1920?unique=b373107

Torque 11 Kg.cm (at maximum efficiency)

950.00 EGP 950.0 EGP 950.00 EGP

950.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: DC.SG555123000.30K

DC Geared Motor SG-555123000 Series - 12VDC LOW NOISE LONG LIFE

Specification of geared motor:

  • Rated Voltage: 12Vdc
  • No Load Current: 140mA
  • No Load Speed: 100 r/min
  • Load Torque Current (With Load): 800mA
  • Load Torque Speed (With Load): 73 r/min
  • Torque at maximum efficiency 11 kg.cm
  • Load Torque: 3.5 kg.cm (0.34 N.m)
  • Output Power: 2.9 W
  • Stall Current: 3000mA
  • Rotation direction: CW/CCW
  • Motor Weight: 350~400 gm

Note: We sell compatible Encoder for this motor at our online store.
