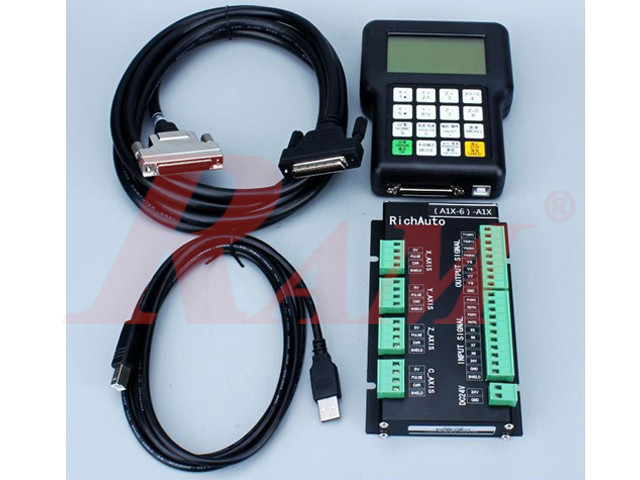

DSP A11 Three Axis Hand Controller for CNC Router

https://www.ram-e-shop.com/web/image/product.template/7033/image_1920?unique=94e67d0

RichAuto A11

16,000.00 EGP 16000.0 EGP 16,000.00 EGP

16,000.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: CNC.DSP.A11

Descriptions

  • High-performance core processing CPU: The eight nuclear processing CPU, have faster calculation, and stronger processing ability.
  • Simple handle structure with buttons controls: 16 buttons operation mode, comfortable hand-held end, easy to learn easy to use, simple, and quick.
  • Multiple data transmission, large storage capacity support: Completely off-line operation and support a variety of mobile storage transmission methods; 512MB internal memory, can read large capacity storage mobile device.
  • Intelligent reading processing documents function: AutoNow series products are smarter in proofreading of the processing documents, to new processing files, only reading before the first time operation. And in the process of reading, it can also skip checking according to customers’ demands which saves the users’ valuable time in a great degree.
  • Intelligent memory function: supports power loss and breakpoint processing; not only storage the process position, but also memory the file name, ensuring user continues processing from breakpoint quickly & accurately.
  • Two kinds of processing mode choices: high precision mode and to ensure machining precision and quality of high-speed mode, which ensure process efficiency, saving processing time.
  • Security checking & alarm: Add security warning systems and abnormal reminder functions, such as back to zero abnormal shaft mark, distance mode mobile safety tips, and processing beyond the function such as display, greatly guarantee the accuracy and consistency of processing.
  • More perfect encryption functions: Hardware encryption, set parameters encryption, running time of encryption and the internal important processing file encryption, and other functions, the modification, prevent delete prevent copying, and to ensure the customers’ technical information and assets safe.
  • Anti-jamming performance ids greatly increased: Through some CE tests, anti-jamming greatly improved.
  • Department stronger: AutoNow-based version 8 series of 8 out into the support I/O mouth custom editing functions, the user can completely according to their own needs editing and defined, and may expand to 32 input 32 output; Based on 8 nuclear processing CPU,  but also for secondary development, for the customer equipment of the special function, special purpose to add, meet the needs of different industries, with period is short, the cost is low, the secrecy id good wait for a characteristic.

Features

  • New three-axis linkage motion mode to achieve comprehensive controlling
  • Support drive and spindle error alarm function
  • Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk processing.
  • Support intelligent file-checking function.
  • Parameter backup and restore function to prevent the loss of important parameters.
  • High anti-jamming intensity passes many CE tests.
  • Intelligent processing memory, supports power fail safeguard and breakpoint function.
  • Definable I/O interfaces provide customers with a wide range of development platforms.

Parameters

  • Product Model: A11
  • CPU: DSP
  • Internal Memory: 512MB
  • Display Screen: 128*64 Monochrome LCD
  • Communication Port: U disk, USB cable
  • Controlled Axis Number: 3 axes
  • Control Signal: differential signal
  • Drive System: step motor/servo motor
  • Min. Input Unit: 0.001mm
  • No Volt Protection: Support
  • Breakpoint Processing Function: 8
  • External Power Supply Voltage: 24V DC
  • Manual Mode: Continuous point move, distance
  • Interpolation Way: line, arc
  • Soft/Hard Limit: support
  • Max. Pulse Frequency: 1M/S
  • Password Protection: Support
  • Support Language: English
  • Box Contains:
    • (1) DSP Handle
    • (1) 50-core cable
    • (1)USB cable
    • (1)8 I/O Wiring board
    • (1) data CD
