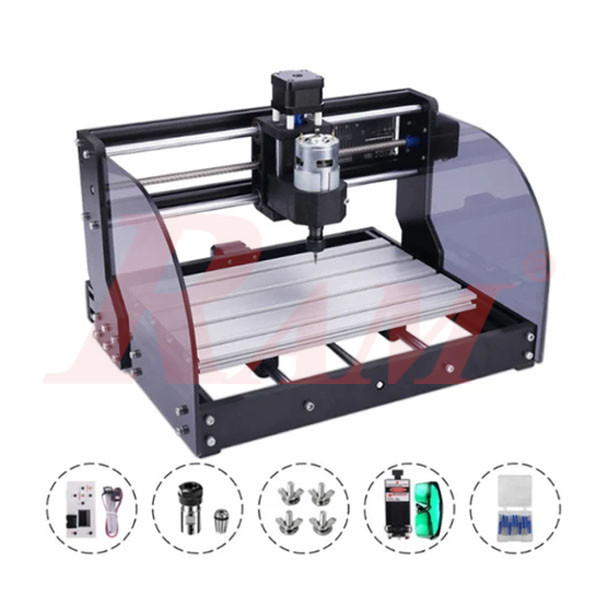

DIY 3018Pro Small CNC LASER 500mW & Engraving Router

https://ram-electronics.odoo.com/web/image/product.template/7867/image_1920?unique=c558a8b

Include 0.5W LASER Head & DC Spindle 100W
Working area: 30*18*4.5 cm

12,000.00 EGP 12000.0 EGP 12,000.00 EGP

12,000.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: CNC.DIY.500MW

Mini Aluminum CNC DIY + 0.5W laser CNC engraving machine Pcb Milling wood Router Printer - Working Area 300 x 180 x 45 mm

Specifications:


  1. Engraving area: 300x180x45mm
  2. Frame size: 400*330*240mm
  3. Construction: Aluminum + plastic
  4. Control Software: GRBL Control
  5. Spindle Motor: 775 Spindle DC24V, Max. 100W ,7000rpm
  6. Stepper Motor: NEMA17 stepper motor 1.3A 0.25N.M
  7. Power Supply: Input AC100-240V,50/60Hz, 1.3A, Output DC24V 5A
  8. Available System for PC: Windows XP/7/8/10/11/ Mac OS
  9. Milling cutter: 3.175mm
  10. ER11 was installed on the spindle motor


Package Include:

  1. All outside Frame parts
  2. All Electrical Parts
  3. Laser and offline controller
  4. Required Screws & Nuts
  5. DC Spindel (+ER11-3.175)
  6. LASER 0.5W
  7. PCB Drill Engraving Bits 0.1 (1 box)
  8. 4pcs clips
  9. Power supply

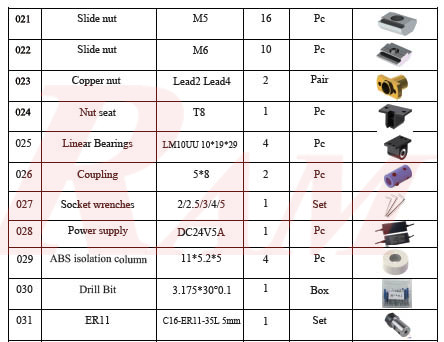

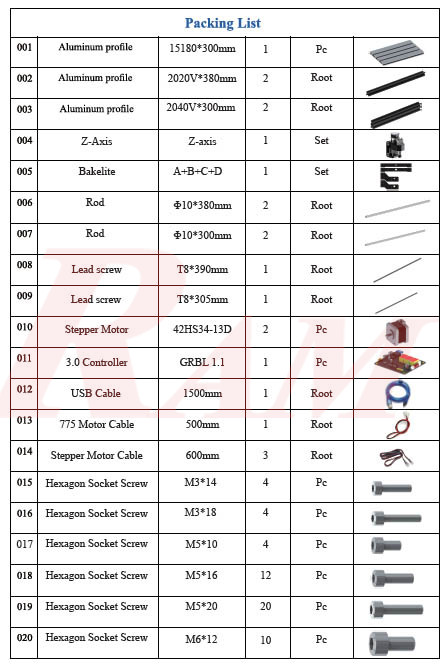

  10. Check the photos for the included parts checklist

NOTES:

  • The laser cannot directly engrave transparent and reflective materials, such as acrylic and stainless steel. It needs to be blacked out and engraved. Otherwise, the laser is easy to wear out, resulting in weaker and weaker power.
  • You need to assemble the machine because it comes as a DIY Kit.
  • Can't Use offline controller board at the same time while connection to PC bia USB cable.
