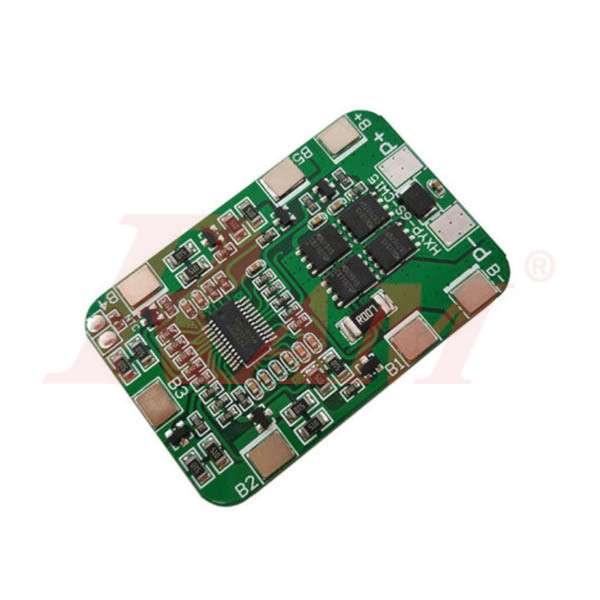

6S 14A w/Balance Lithium Li-ion Battery Packs BMS Protection PCB Board 22.2V
Specification:
- Size: 34 * 53.5 * 3.0mm
- Upper limit working current: 14A (Attention to heat dissipation)
- Upper limit instantaneous current: 20A
- Balanced current: 56mA
- Overcharge voltage range: 4.26V
- Over discharge voltage range: 2.5V
- Charge voltage: 25.2V ~ 26V
- Short circuit protection: Protected, delayed self recovery
Main function:
Overcharge protection, over-discharge protection function, short circuit protection function, over current protection function, balance.
Important Cautions:

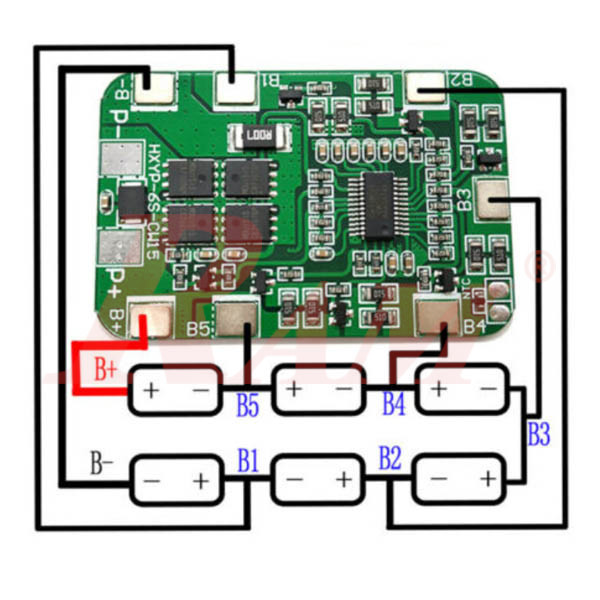

- Strictly according to the diagram wiring - do not make short circuit.
- After the wire is connected, it needs to charge the batteries first, then have output.
- When the battery is connected in series with 5 groups, please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use them.
- Do not mix the good battery and the bad battery.
- It will be better if the capacity of the battery's internal resistance is closer.
