BMS 3 String 12V/60A

https://www.ram-e-shop.com/web/image/product.template/7937/image_1920?unique=43a5fc7

18650 Cell Lithium Battery Protection Board 11.1V Current Peak 60A Over-Current Protection

175.00 EGP 175.0 EGP 175.00 EGP 250.00 EGP

175.00 EGP 250.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: BMS.3S.60A

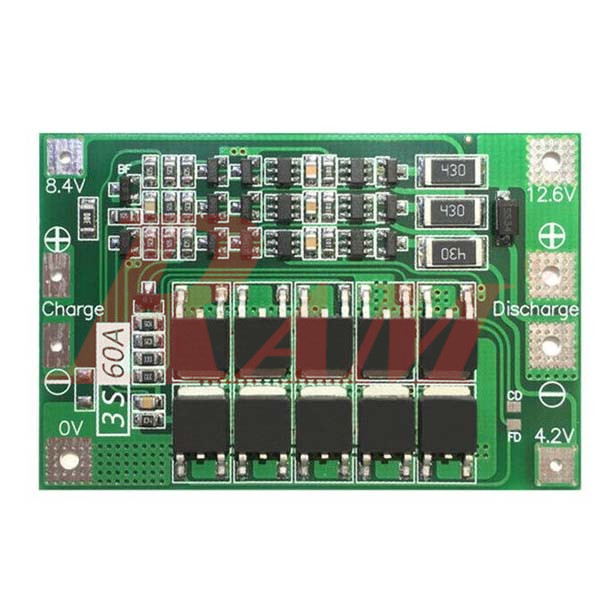

3S 60A Bms Board Lithium Li-Ion 18650 Battery Protection Board With Balance For Drill Motor 11.1V 12.6V 18650 Lipo Cell Module

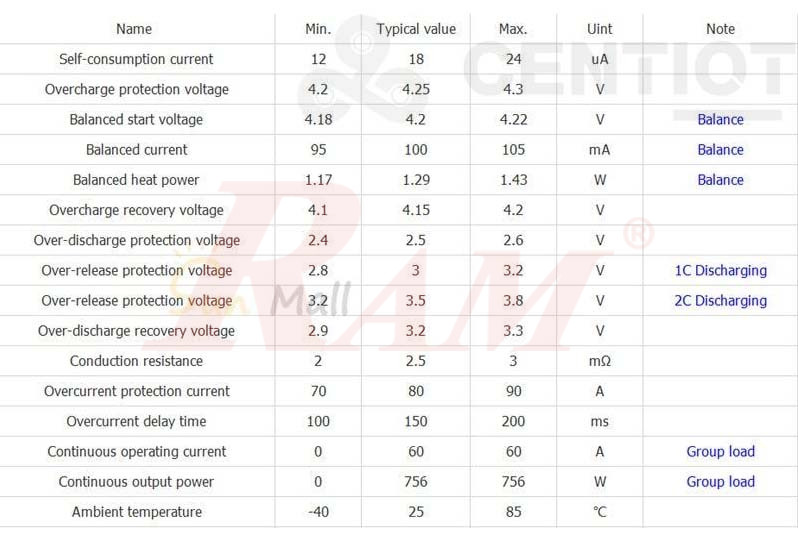

Specification:

  • Overvoltage range: 4.25 ~ 4.35v ± 0.05v
  • Charging voltage: 12.6V - 13.6V
  • Over-discharge voltage range: 2.9 ~ 3.3v±0.05v
  • Maximum operating current: 0 ~ 60A
  • Quiescent current: less than 24uA
  • Working temperature: -40 +85 C
  • Short circuit protection: Yes, delayed self-recovery
  • Size: 62mm x 40mm x 1.2mm (LxWxH)

Important Cautions:

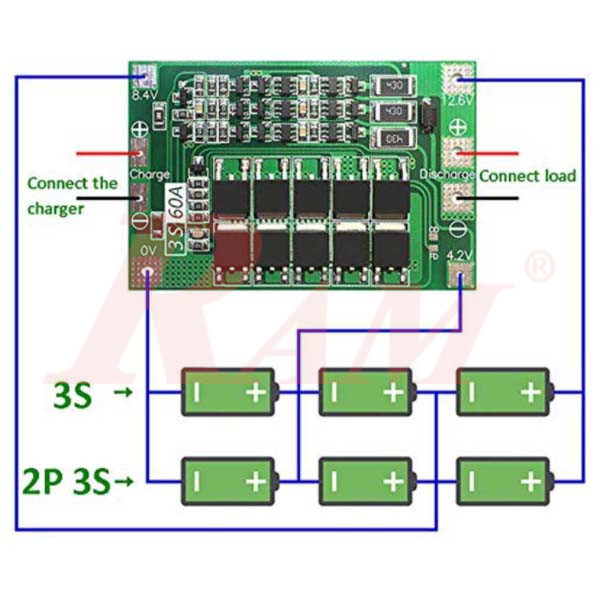

  1. Strictly according to the diagram wiring - do not make short circuit.
  2. After the wire is connected, it needs to charge the batteries first, then have output.
  3. When the battery is connected in series with 5 groups, please ensure that the voltage of each battery is the same. If not the same, please fill in each set of batteries and then use them.
  4. Do not mix the good battery and the bad battery.
  5. It will be better if the capacity of the battery's internal resistance is closer.
