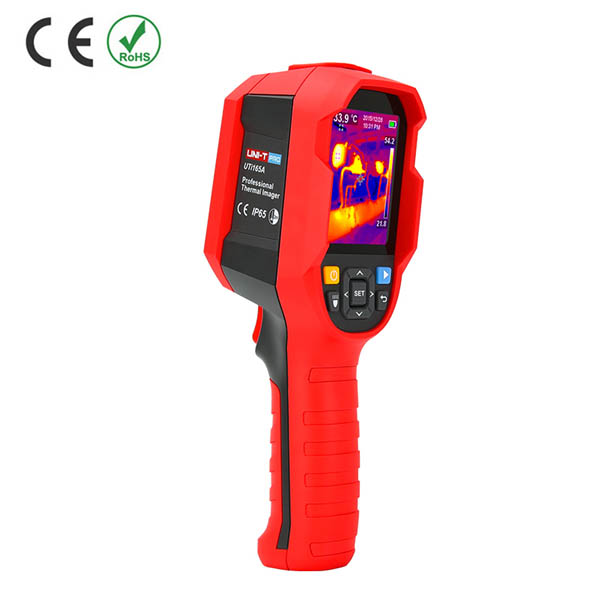

Heavy Duty Thermal Camera
UTi165A is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.
Features
- Durable and user-friendly
- 2.8” TFT display screen (320×240 Pixels)
- IR resolution: 160×120
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP65
- 2m drop-proof
| Technical Data | |
| IR resolution (Pixels) | 160×120 |
| Display | 2.8” TFT LCD (320×240) |
| Field of view(FOV) | 56°×42° |
| Thermal sensitivity(NETD) | ≤50mk |
| Spatial resolution(IFOV) | 6.1mrad |
| Frame rate | ≤9Hz |
| Spectral range | 8~14µm |
| Focus | Focus free |
| Temperature measurement range | -10℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 5 |
| (White hot, Red hot, Ice blue, Rainbow, Ironbow) | |
| Image modes | Thermal |
| Hi/Lo temperature alarm | Icon, LED flashlight |
| PC software analysis | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.6V 5000mAh) |
| Battery operation time | ≥ 6 hours |
| USB | Type-C |
| IP rating | IP65 |
| Drop-proof | 2m |
| Storage | Up to 32GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE, FCC, RoHS |
| Product net weight | 490g |
| Product size | 236mm×75.5mm×86mm |
| Packing Details | |
| Standard accessories | Micro SD card, Type-C USB cable, Adapter, English manual, Documents download operation guide card |
| Standard individual packing | Gift box |
