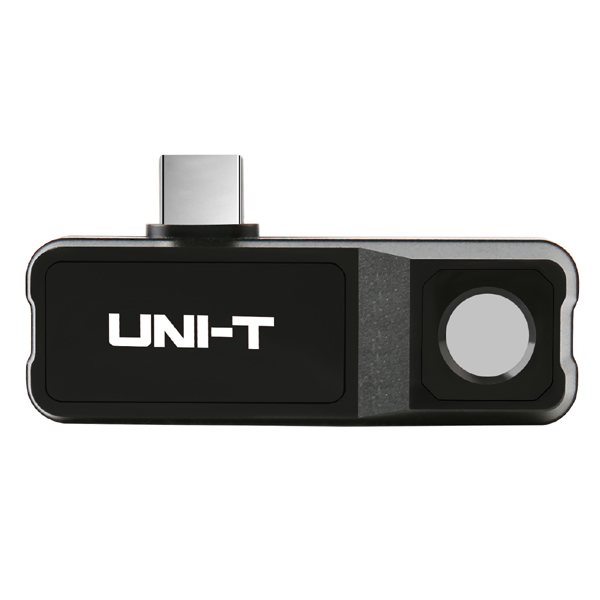

UNI-T UTi120M Smartphone Thermal Camera Module for Android

The UNI-T UTi120M is a compact and lightweight smartphone thermal camera module that instantly transforms your Android phone into a professional thermal imaging device. Designed for fast, non-contact temperature inspection, it connects directly via USB-C and delivers real-time thermal images for electrical diagnostics, HVAC troubleshooting, mechanical inspection, and everyday maintenance tasks.

Key Features

• 120 × 90 infrared resolution (10,800 pixels) for clear thermal imaging
• Wide temperature measurement range: –20 °C to 400 °C
• High thermal sensitivity (NETD ≤ 60 mK @ 25 °C) for detecting small temperature differences
• Plug-and-play USB-C connection – no internal battery required
• Focus-free design for instant scanning
• 7 selectable color palettes for enhanced thermal contrast
• Multiple image modes: Thermal, Fusion, and Picture-in-Picture (PIP)
• Advanced on-screen analysis tools (points, lines, rectangles, circles)
• High/Low temperature alarm for quick fault identification
• Photo capture and video recording via mobile app
• Ultra-compact and lightweight design – easy to carry in your pocket

Technical Specifications

Thermal Imaging

• IR Resolution: 120 × 90 pixels
• Field of View (FOV): 50° × 38°
• Thermal Sensitivity (NETD): ≤ 60 mK @ 25 °C
• Spatial Resolution (IFOV): 7.3 mrad
• Frame Rate: ≤ 25 Hz
• Spectral Range: 8 – 14 µm
• Focus: Focus-free
• Lens Focal Length: 2.28 mm

Temperature Measurement

• Measurement Range: –20 °C to 400 °C
• Accuracy: ±2 °C or ±2 % (whichever is greater)
• Emissivity: Adjustable 0.01 – 1.00 (default 0.95)

Functions

• Color Palettes: 7
  (White Hot, Lava, Ironbow, Black Hot, Red Hot, Rainbow, Rainbow HC)
• Image Modes: Thermal, Fusion, PIP
• On-Screen Analyzer:
  • 6 Points
  • 6 Lines
  • 6 Rectangles
  • 6 Circles
• High/Low Temperature Alarm: Supported
• Video Recording: Supported

General Characteristics

• USB Interface: Type-C
• Drop Resistance: 2 m
• Image / Video Formats: JPEG, MP4
• Certifications: CE, UKCA, FCC, RoHS
• Net Weight: 25 g
• Product Size: 53 × 18.2 × 18.5 mm

Packing Details

Standard Accessories Included:

• Micro USB adapter
• USB cable
• English user manual
• Documents download & operation guide card

Typical Applications

• Electrical panel and circuit inspection
• HVAC system diagnostics
• Mechanical and motor temperature analysis
• Insulation and building inspection
• Automotive troubleshooting
• Electronics and PCB testing
• Home maintenance and DIY projects

The UNI-T UTi120M Smartphone Thermal Camera Module delivers professional thermal imaging performance in an ultra-portable design, making it the perfect tool for fast, mobile, and accurate temperature inspections using your Android smartphone.
