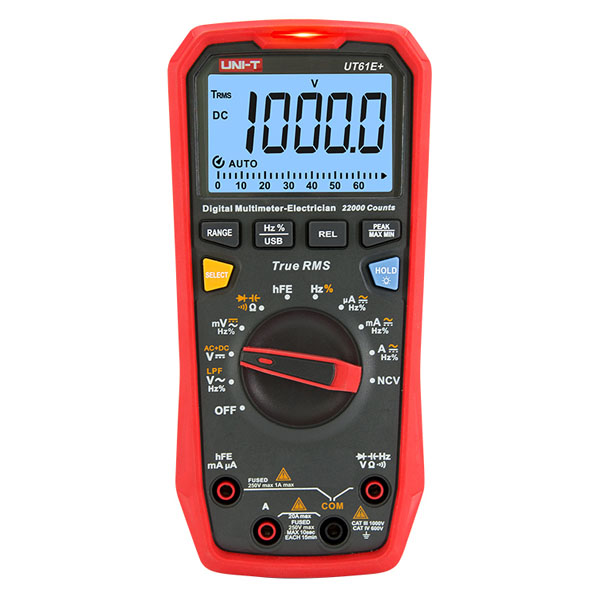

UT61E+ True RMS Digital Multimeter 1000V

https://www.ram-e-shop.com/web/image/product.template/8086/image_1920?unique=0c1a160

Professional multimeter with display counts 22000
UNI-T Brand

3,500.00 EGP 3500.0 EGP 3,500.00 EGP

3,500.00 EGP

Not Available For Sale

This combination does not exist.

 Pick up from RAM Store
 Shipping: 2-3 Business Days


Internal Reference: AVO.UT61E+.UNIT

UT61E+ series is a reliable true RMS digital multimeter with display counts 22,000. It can measure up to 1000V AC/DC. Equipped with audible and visible alarms, this series can provide warning especially when measuring high voltage/current.

Features

  • 1000V True RMS
  • Data hold/backlight
  • Max/Min/Relative mode
  • USB communication
  • Input protection
  • Diode/continuity test
  • NCV (audible/visual alarm)
Specifications Range UT61E+
AC voltage (V) 1000V ±(0.8%+10)
DC voltage (V) 1000V ±(0.05%+5)
AC current (A) 20A ±(0.8%+10)
DC current (A) 20A ±(0.5%+10)
Resistance (Ω) 220MΩ ±(0.5%+10)
Capacitance (F) 220mF ±(3%+5)
Frequency (Hz) 220MHz ±(0.01%+5)
Duty cycle (%) 0.1%~99.9% ±(2%+5)
Display count   22000
Bandwidth (Hz)   40~10kHz
LPF ACV
ACV+DCV
Transistor hFE
Peak Hold
Analog bar   46
General Characteristics
Power 1.5V battery (R03) x 4
Product net weight 350g
Product size 190mm x 90mm x 50mm
Standard accessories Battery, gold plated test leads, USB cable, temperature probe (UT61D+),
  multi-purpose socket (UT61E+), English manual
Standard individual packing Gift box, cloth bag
